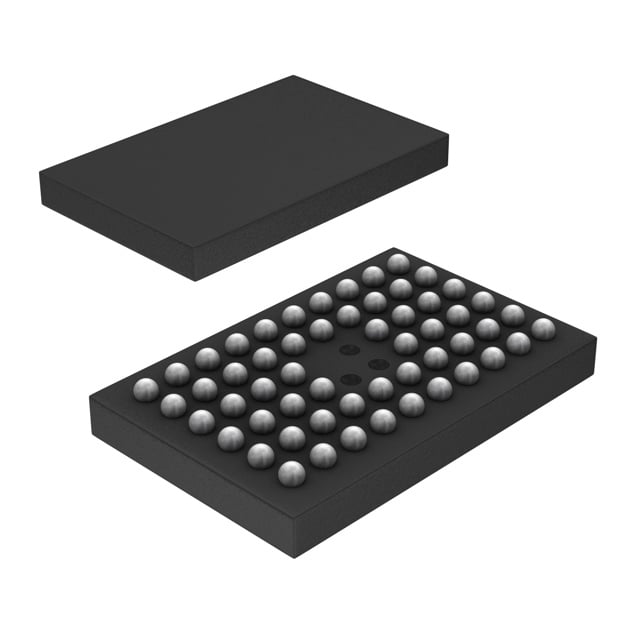

SN74LVT16245BGQLR TI Bus Transceiver | 56-BGAMICROSTARJUNIOR (7X4.5) | 3.3V, 16-Bit

Product Overview

The SN74LVT16245BGQLR is a 16-bit (dual octal) non-inverting bus transceiver from Texas Instruments, designed for 3.3-V VCC operation with 5-V tolerant I/Os. It features 3-state outputs and is ideal for bidirectional asynchronous communication between data buses. The device is housed in a compact 56-ball BGA MICROSTAR JUNIOR package (7x4.5 mm), making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with 3-state outputs
• 5-V tolerant inputs for mixed-voltage systems
• Low propagation delay (3.5 ns typical)
• High drive capability: -32 mA / 64 mA
• Power-down high-impedance outputs
• Bus-hold circuitry eliminates external pull-up resistors
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., infotainment systems)
• Industrial PLC (Programmable Logic Controller) I/O modules
• Telecommunications line cards for signal buffering
• Medical imaging equipment (e.g., ultrasound consoles)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVT16245BGQLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
