SN74LVTH162245KR TI Bus Transceiver | 56-BGAMICROSTARJUNIOR (7X4.5) | 3.3V, 16-Bit

Product Overview

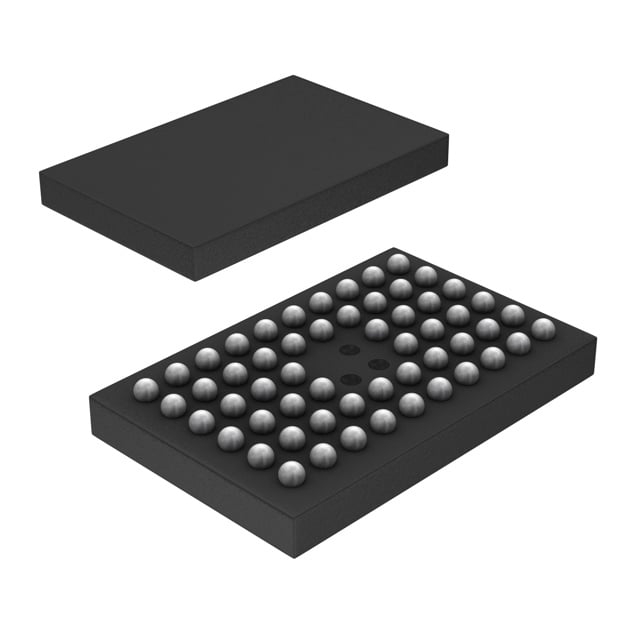

The SN74LVTH162245KR is a 16-bit (dual octal) non-inverting bus transceiver from Texas Instruments, designed for 3.3-V VCC operation with 5-V tolerant I/Os. It features 3-state outputs and is housed in a compact 56-ball BGA MICROSTAR JUNIOR package (7x4.5 mm). This device is ideal for bidirectional asynchronous communication between data buses, offering high drive capability (up to 64 mA sink/32 mA source) and low static power consumption. The SN74LVTH162245KR supports live insertion and partial-power-down scenarios, making it suitable for hot-swap applications.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with 3-state outputs
• 5-V tolerant inputs and outputs
• Supports mixed-mode signal operation (3.3 V and 5 V)
• High drive: -32 mA source / 64 mA sink
• Low static power consumption (ICC = 5 µA max)
• Bus-hold circuitry eliminates need for external pull-up resistors
• Live insertion and partial-power-down (Ioff) support
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., infotainment clusters)
• Industrial PLC I/O modules for signal buffering
• Telecommunications line cards for backplane interfacing
• Medical imaging equipment (e.g., ultrasound consoles)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVTH162245KR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVTH162245KR 是一款來自德州儀器的 16 位（雙八位）非反相匯流排收發器，設計用於 3.3-V VCC 操作，並具有 5-V 容限 I/O。它採用緊湊的 56 球 BGA MICROSTAR JUNIOR 封裝（7x4.5 mm），提供三態輸出。該器件非常適合數據匯流排之間的雙向異步通信，具有高驅動能力（高達 64 mA 灌電流/32 mA 拉電流）和低靜態功耗。SN74LVTH162245KR 支持帶電插入和部分斷電場景，適用於熱插拔應用。

詳細技術參數

核心特性

• 16 位雙向匯流排收發器，帶三態輸出
• 5-V 容限輸入和輸出
• 支持混合模式信號操作（3.3 V 和 5 V）
• 高驅動：-32 mA 拉電流 / 64 mA 灌電流
• 低靜態功耗（ICC 最大值 5 µA）
• 匯流排保持電路無需外部上拉電阻
• 支持帶電插入和部分斷電（Ioff）
• ESD 保護超過 JESD 22（2000-V HBM，1000-V CDM）

典型應用場景

• 5G 基站控制板的數據匯流排隔離
• 汽車儀表板顯示模塊（例如信息娛樂集群）
• 工業 PLC I/O 模塊的信號緩衝
• 電信線路卡的背板接口
• 醫療成像設備（例如超聲控制台）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVTH162245KR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
