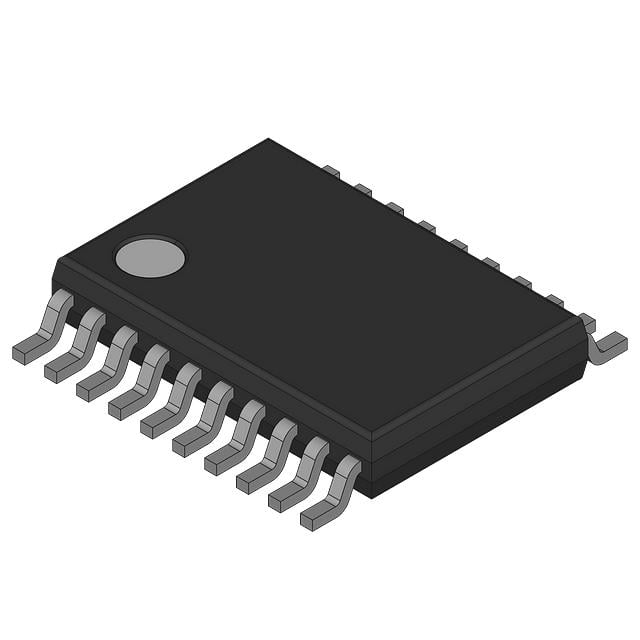

SN74LVTT244PWLE TI Buffer/Driver | 8-Ch, Non-Inverting, 3-State, 4.5V-5.5V

Product Overview

The SN74LVTT244PWLE is a high-performance octal buffer and line driver designed by Texas Instruments. It features non-inverting outputs with 3-state capability, making it ideal for driving bus lines or buffering memory address registers. Operating from a 4.5V to 5.5V supply, this device is optimized for 5V TTL logic systems and provides high drive current (up to 24mA) while maintaining low power consumption. The SN74LVTT244PWLE is part of TI's LVTTL family, offering improved noise margins and reduced propagation delays compared to standard TTL devices.

Detailed Technical Specifications

Key Features

• 8-bit non-inverting buffer/line driver with 3-state outputs
• Wide supply voltage range: 4.5V to 5.5V
• High drive capability: ±24mA at 5V
• Low propagation delay: 4.5ns typical
• Inputs are TTL-compatible
• Outputs are 5V tolerant
• Power-down high-impedance outputs
• ESD protection exceeds 2000V (HBM)
• Available in TSSOP-20 package

Target Applications

• 5G base station control logic: buffering address/data lines between FPGA and memory
• Automotive dashboard display: driving LED indicators and segment displays
• Industrial PLC I/O modules: signal conditioning for sensor inputs
• Telecommunications equipment: line driving for backplane buses
• Medical imaging systems: data buffering in ultrasound processing units

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVTT244PWLE. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
