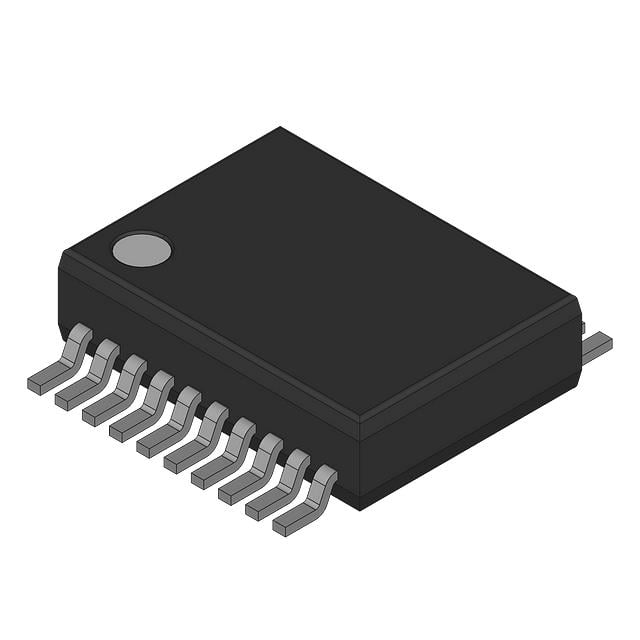

SN74LVTZ245DBLE TI Bus Transceiver | 3.3V | 8-bit, Non-Inverting

Product Overview

The SN74LVTZ245DBLE is a high-performance, 8-bit bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. Operating at 3.3V, it features non-inverting outputs and is part of the LVTZ family, offering low voltage and high drive capability. The device is ideal for bidirectional data flow in mixed-voltage systems, with a typical propagation delay of 3.5 ns and output drive of -32/64 mA. It is available in a small-outline package (SSOP) and is characterized for operation from -40°C to 85°C.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with non-inverting outputs
• 3-state outputs for bus isolation
• Low voltage operation: 2.7V to 3.6V
• 5V tolerant inputs for mixed-voltage systems
• High drive capability: -32 mA / 64 mA
• Fast propagation delay: 3.5 ns typical
• Power-down high-impedance outputs
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display interfaces
• Industrial PLC modules for sensor data transfer
• Networking equipment (routers, switches) for backplane communication
• Medical imaging systems (e.g., MRI, CT) for digital signal routing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVTZ245DBLE. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
