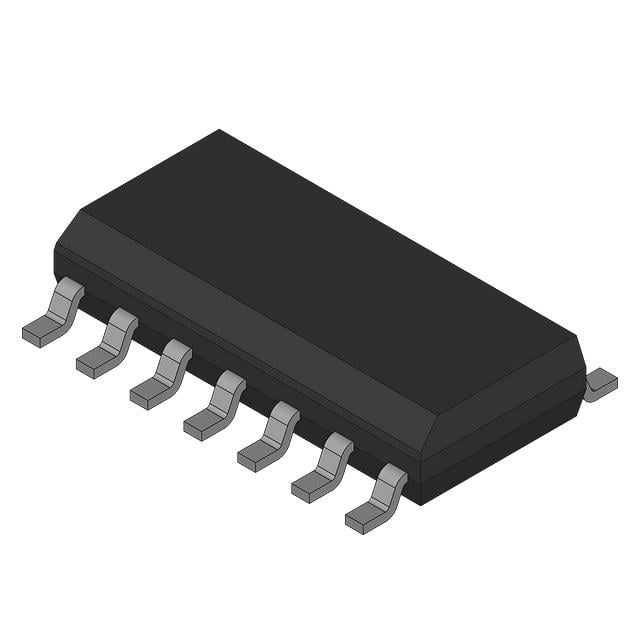

SN75109AD TI Line Driver | | 5V, 20Mbps, Single Differential

Product Overview

The SN75109AD is a single differential line driver designed by Texas Instruments for digital data transmission over balanced lines. It operates from a single 5V supply and supports data rates up to 20 Mbps. The device features TTL/CMOS compatible inputs and differential outputs, making it ideal for RS-422, RS-485, and other high-speed communication standards. Housed in an 8-pin SOIC package, the SN75109AD offers robust performance with low power consumption and high noise immunity.

Detailed Technical Specifications

Key Features

• Single 5V supply operation
• High data rate up to 20 Mbps
• TTL/CMOS compatible inputs
• Differential outputs with high noise immunity
• Low power consumption
• Thermal shutdown protection
• Industry-standard 8-pin SOIC package

Target Applications

• RS-422/RS-485 communication interfaces in industrial automation (e.g., PLC controllers)
• 5G base station backhaul links for high-speed data transmission
• Automotive infotainment systems (e.g., dashboard display communication)
• Building automation (e.g., HVAC control networks)
• Medical equipment (e.g., patient monitoring systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN75109AD. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
