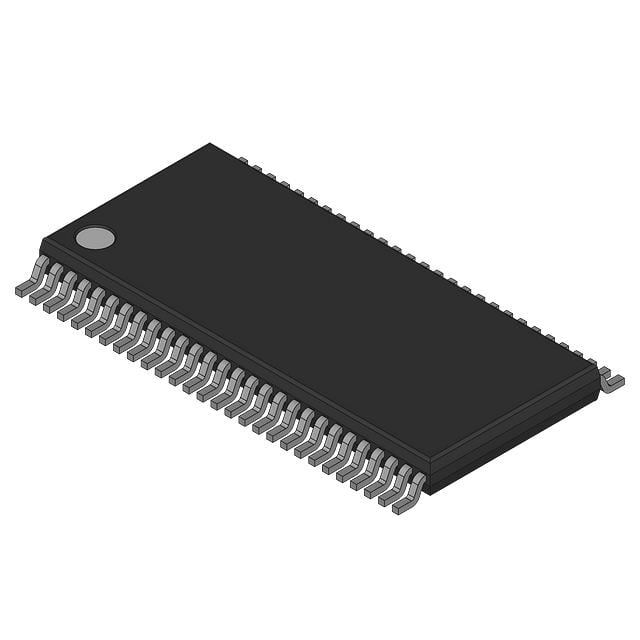

SN75970B1DGG TI RS-485 Transceiver | 3.3V, Half-Duplex, 250kbps

Product Overview

The SN75970B1DGG from Texas Instruments is a low-power, half-duplex RS-485 transceiver designed for balanced data transmission. It operates from a single 3.3V supply and supports data rates up to 250 kbps. The device features a 1/8 unit load, allowing up to 256 nodes on the bus, and includes thermal shutdown protection. It is available in a TSSOP-16 package.

Detailed Technical Specifications

Key Features

• Half-duplex RS-485 transceiver
• 3.3V supply operation
• 250 kbps data rate
• 1/8 unit load (256 nodes)
• Thermal shutdown protection
• ESD protection up to ±15 kV
• Low power consumption

Target Applications

• Industrial automation (e.g., PLC, motor drives)
• Building automation (e.g., HVAC controllers, lighting systems)
• Telecommunications (e.g., 5G base station control interfaces)
• Transportation (e.g., dashboard display units, infotainment systems)
• Networked security systems (e.g., IP cameras, access control)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN75970B1DGG. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
