SN75C189ADB TI RS-232 Transceiver | 4 Drivers, 0 Receivers | 5V Supply, 30V/us Slew Rate

Product Overview

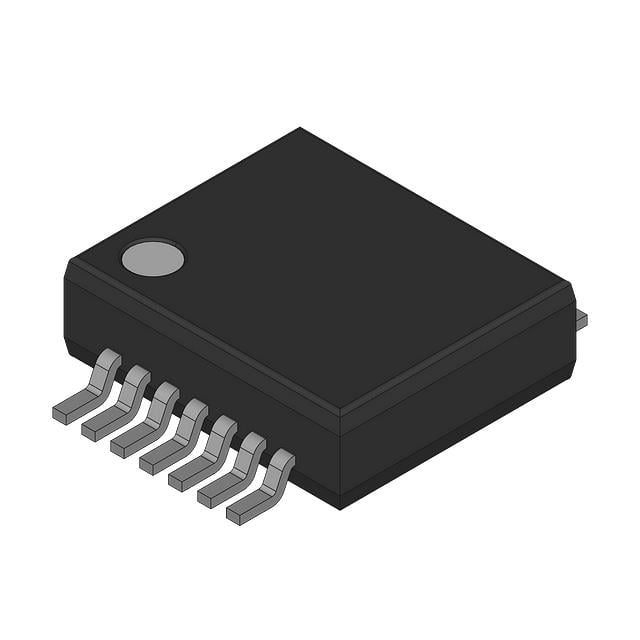

The SN75C189ADB is a quad RS-232 line driver from Texas Instruments, designed for serial communication in industrial and commercial applications. It operates from a single 5V power supply and features four independent drivers that convert TTL/CMOS logic levels to RS-232 voltage levels. The device is housed in a 16-pin SSOP package, offering a compact solution for space-constrained designs. With a slew rate of 30V/µs and data rates up to 120 kbps, it ensures reliable data transmission over moderate cable lengths. The SN75C189ADB is characterized for operation from 0°C to 70°C, making it suitable for typical commercial environments.

Detailed Technical Specifications

Key Features

• Quad RS-232 line drivers in a single package
• Single 5V power supply operation
• Low power consumption: 30 mW typical
• High slew rate: 30 V/µs
• Data rate up to 120 kbps
• Output voltage swing meets RS-232 standards
• Compact SSOP package for space-saving designs
• Pin-compatible with industry-standard devices

Target Applications

• Industrial control systems (e.g., PLCs, motor drives)
• Point-of-sale (POS) terminals
• Data communication equipment (e.g., modems, routers)
• Medical equipment (e.g., patient monitors)
• Automotive infotainment systems
• 5G base station control interfaces
• Dashboard display units

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN75C189ADB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
