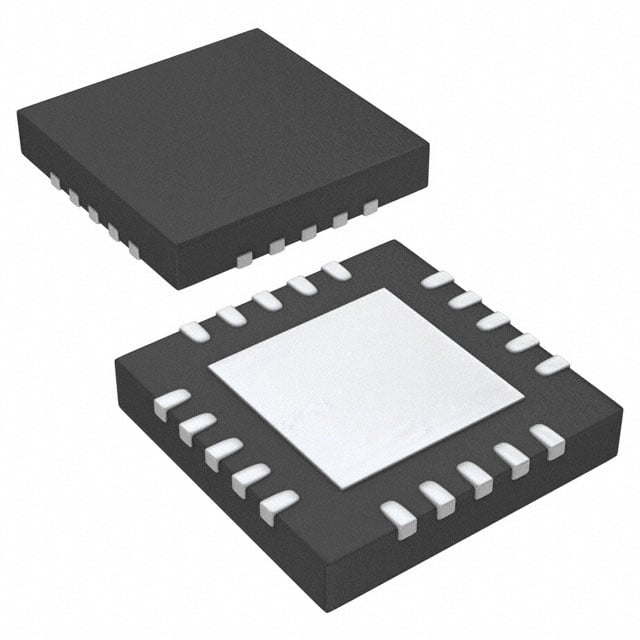

SN75LVCP412ARTJR TI Redriver | 20-QFN (4x4) | 8.5Gbps, Dual Channel

Product Overview

The SN75LVCP412ARTJR from Texas Instruments is a dual-channel, single-lane redriver designed for high-speed signal conditioning in PCIe, SATA, and SAS applications. It supports data rates up to 8.5 Gbps per channel, providing equalization and de-emphasis to extend signal reach and improve system performance. Housed in a compact 20-pin QFN (4x4 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Dual-channel redriver for PCIe Gen1/2/3, SATA 1.5/3/6 Gbps, and SAS 1.5/3/6 Gbps
• Programmable equalization and de-emphasis for optimal signal integrity
• Low power consumption: 150 mW typical
• Small footprint: 20-QFN (4x4 mm) package
• Single supply voltage: 3.3V
• Hot-plug capable
• ESD protection: 2 kV HBM

Target Applications

• 5G base stations (e.g., signal conditioning in backplane interfaces)
• Enterprise servers and storage systems (e.g., Dell PowerEdge servers, NetApp storage arrays)
• Automotive infotainment and ADAS (e.g., dashboard displays, camera modules)
• Industrial PCs and embedded systems
• Consumer electronics (e.g., high-end gaming motherboards)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN75LVCP412ARTJR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
