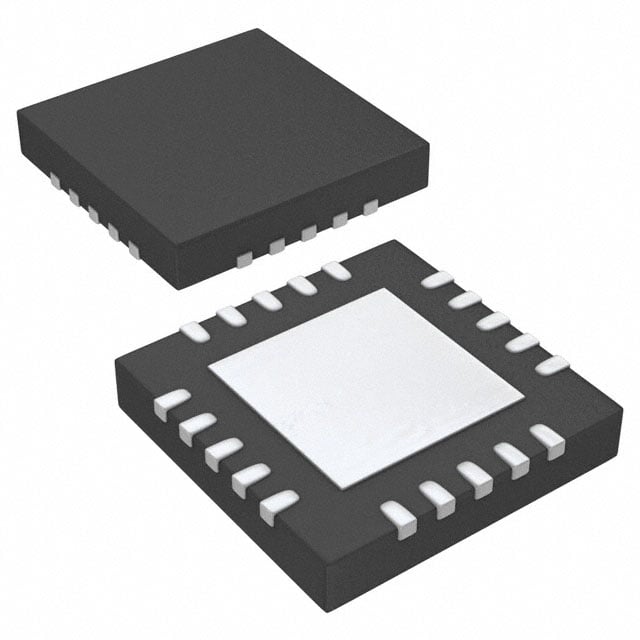

SN75LVCP412ARTJT TI SATA Redriver | 20-QFN (4x4) | 6 Gbps, 2-Channel

Product Overview

The SN75LVCP412ARTJT is a dual-channel, single-lane SATA redriver from Texas Instruments, designed to extend the reach of high-speed serial links. It operates at data rates up to 6 Gbps, supporting SATA Gen1, Gen2, and Gen3 standards. The device is housed in a compact 20-pin QFN package (4x4 mm), making it ideal for space-constrained applications. It features programmable equalization, output swing control, and low power consumption, ensuring signal integrity over longer PCB traces or cables.

Detailed Technical Specifications

Key Features

• Supports SATA Gen1 (1.5 Gbps), Gen2 (3 Gbps), and Gen3 (6 Gbps)
• Dual-channel redriver for two independent SATA links
• Programmable input equalization and output swing for optimized signal integrity
• Low power consumption: 150 mW typical
• Small footprint: 20-pin QFN (4x4 mm)
• Integrated 50-Ω termination resistors
• Hot-plug capable
• Industrial temperature range: -40°C to 85°C

Target Applications

• Enterprise storage systems (e.g., RAID controllers, SSDs)
• Data center servers (e.g., Dell PowerEdge, HPE ProLiant)
• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment and dashboards (e.g., Tesla Model 3, BMW iDrive)
• Industrial PCs and embedded systems
• Consumer electronics with SATA interfaces
