SN75LVDS83BZQLR TI LVDS Serializer | 56-BGA (7x4.5mm) | 85MHz, 5V Tolerant

Product Overview

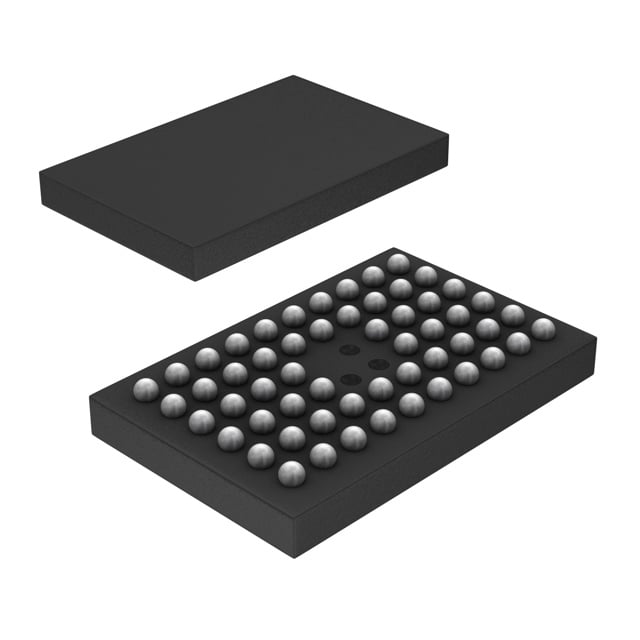

The SN75LVDS83BZQLR is a high-speed LVDS serializer from Texas Instruments, designed to convert 28-bit parallel data into four LVDS data streams. It operates at a maximum clock frequency of 85 MHz, supporting data rates up to 2.38 Gbps. The device is housed in a compact 56-ball BGA MicroStar Junior package (7x4.5 mm), making it ideal for space-constrained applications. It features 5V tolerant inputs and a wide supply voltage range of 3.0V to 3.6V, ensuring compatibility with various logic levels.

Detailed Technical Specifications

Key Features

• 28-bit parallel-to-LVDS serialization
• Up to 85 MHz clock support
• Low power consumption: 150 mW (typ) at 85 MHz
• Integrated PLL for clock generation
• 5V tolerant inputs for mixed-voltage systems
• Flow-through pinout for easy PCB layout
• Industrial temperature range

Target Applications

• 5G base station backplane communication
• Automotive dashboard display interfaces
• Medical imaging equipment (e.g., ultrasound)
• Industrial camera links
• Video surveillance systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN75LVDS83BZQLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
