SNJ54AC11FK TI Logic Gates | | Triple 3-Input AND Gate, 2V to 6V

Product Overview

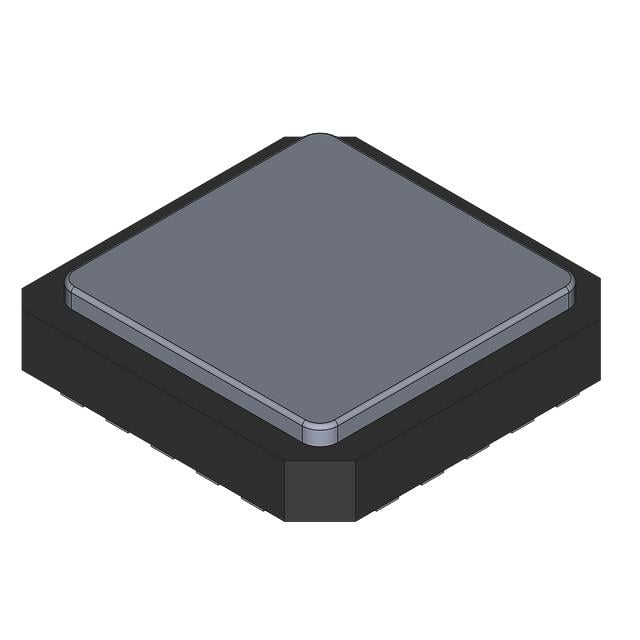

The SNJ54AC11FK is a high-speed triple 3-input AND gate from Texas Instruments, fabricated using advanced AC (Advanced CMOS) technology. It operates over a wide supply voltage range of 2V to 6V, making it suitable for battery-powered and industrial applications. The device features balanced propagation delays and high noise immunity, ensuring reliable performance in demanding environments. Housed in a ceramic flatpack (FK) package, it is designed for military and aerospace applications requiring high reliability and extended temperature range (-55°C to +125°C).

Detailed Technical Specifications

Key Features

• Triple 3-input AND gate in a single package
• Wide operating voltage range: 2V to 6V
• High noise immunity: VNIH = 0.7V (typ) at VCC=5V
• Low power consumption: ICC = 4µA (max) at VCC=5.5V
• Balanced propagation delays: tPLH ≈ tPHL
• Inputs accept voltages up to VCC
• Outputs source/sink 24mA at VCC=4.5V
• Ceramic flatpack package for high reliability
• Military temperature range: -55°C to +125°C

Target Applications

The SNJ54AC11FK is ideal for use in high-reliability systems such as 5G base stations, satellite communication equipment, avionics, and military radar systems. It can also be used in industrial control units, automotive engine control modules (ECU), and medical imaging devices. Specific examples include logic gating in FPGA configuration, address decoding in memory modules, and signal conditioning in sensor interfaces.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54AC11FK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
