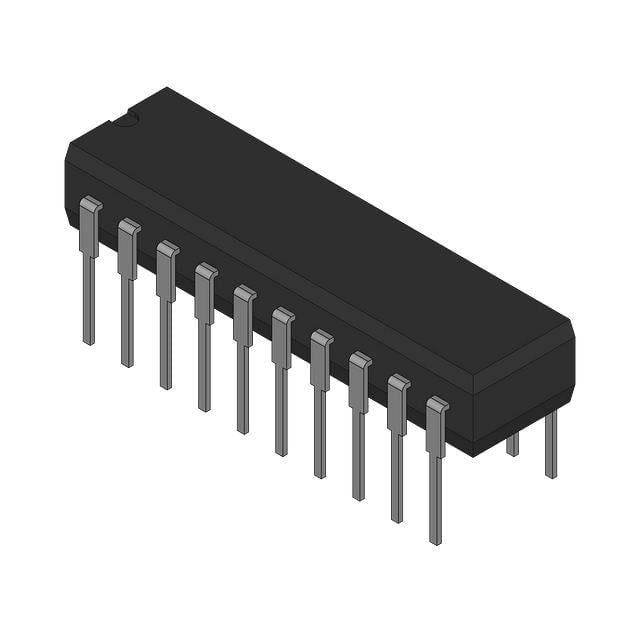

SNJ54ALS804AJ TI Hex Inverting Buffer/Driver | | 4.5V-5.5V, 24mA Output

Product Overview

The SNJ54ALS804AJ is a high-performance hex inverting buffer/driver from Texas Instruments, designed for military and aerospace applications. It features six independent inverting buffers with open-collector outputs, capable of driving up to 24mA per output. Operating over a wide temperature range of -55°C to +125°C, this device ensures reliable performance in harsh environments. The SNJ54ALS804AJ is part of TI's advanced low-power Schottky (ALS) logic family, offering a balance of speed and power efficiency.

Detailed Technical Specifications

Key Features

• Six independent inverting buffers with open-collector outputs
• High output drive capability: 24mA per output
• Wide operating voltage range: 4.5V to 5.5V
• Fast propagation delay: 6ns typical
• Extended temperature range: -55°C to +125°C
• Low power consumption: 1mW typical per gate
• Military-grade reliability and qualification

Target Applications

• Military communication systems (e.g., AN/PRC-117G manpack radio)
• Aerospace avionics (e.g., flight control computers in F-16)
• Industrial control systems (e.g., PLC modules for factory automation)
• High-reliability data acquisition (e.g., satellite telemetry)
• 5G base station control logic (e.g., remote radio unit interface)
• Automotive engine control units (e.g., ECU for heavy-duty vehicles)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54ALS804AJ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
