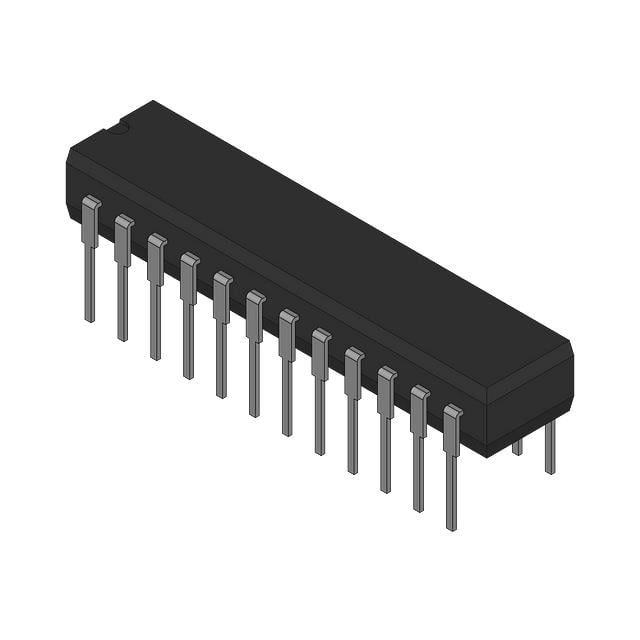

SNJ54ALS870JT TI Register | 16-Bit D-Type | 4.5V-5.5V, 24mA Output

Product Overview

The SNJ54ALS870JT is a high-performance 16-bit D-type register from Texas Instruments, designed for advanced digital systems requiring reliable data storage and transfer. Manufactured with advanced low-power Schottky (ALS) technology, it offers a perfect balance of speed and power efficiency. The device features 16 edge-triggered D-type flip-flops with a common clock (CLK) and output enable (OE) control, making it ideal for bus-oriented applications. It operates over a wide supply voltage range of 4.5V to 5.5V and can source/sink up to 24mA at the outputs, ensuring robust drive capability. The SNJ54ALS870JT is specified for the military temperature range (-55°C to +125°C) and is available in a hermetic ceramic package, guaranteeing high reliability in harsh environments.

Detailed Technical Specifications

Key Features

• 16-bit D-type register with common clock and output enable
• Advanced low-power Schottky (ALS) technology for high speed and low power
• Wide supply voltage range: 4.5V to 5.5V
• High output drive: ±24mA at 5V
• Military temperature range: -55°C to +125°C
• Hermetic ceramic package for high reliability
• Typical propagation delay: 10ns
• Inputs are TTL-compatible
• 3-state outputs for bus-oriented applications

Target Applications

The SNJ54ALS870JT is ideal for demanding applications where reliability and performance are critical. Specific examples include:

• 5G base station control logic and data buffering
• Avionics flight control systems and data acquisition
• Military radar and communication systems
• Industrial automation and process control
• High-reliability server and storage systems
• Automotive engine control units (ECUs) for off-road vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54ALS870JT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
