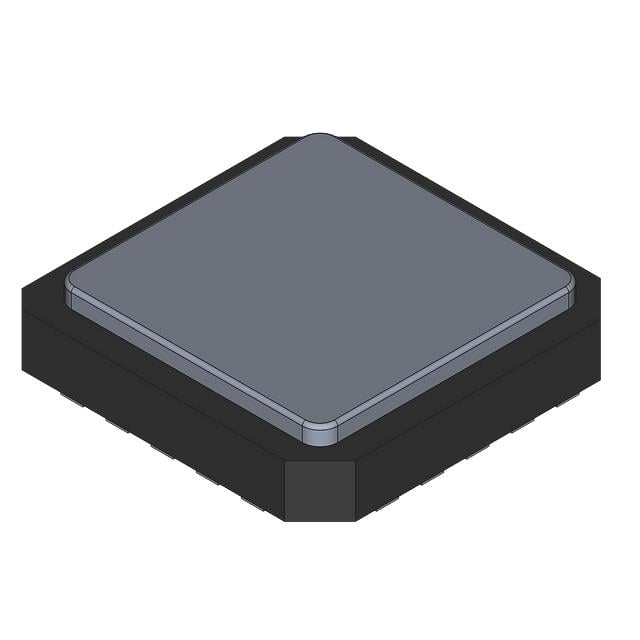

SNJ54HC253FK TI Logic IC | Dual 4-to-1 Line Data Selector/Multiplexer | 2V to 6V, High-Speed

Product Overview

The SNJ54HC253FK is a high-speed dual 4-to-1 line data selector/multiplexer from Texas Instruments, fabricated using advanced silicon-gate CMOS technology. It operates over a wide supply voltage range of 2V to 6V, providing compatibility with TTL logic levels. The device features two independent 4-input multiplexers with common select inputs and individual output enables. It is designed for high-performance memory decoding, data routing, and signal selection in demanding applications such as telecommunications, industrial control, and aerospace systems.

Detailed Technical Specifications

Key Features

• Dual 4-to-1 line data selector/multiplexer with common select inputs
• Individual output enables for each multiplexer
• Wide operating voltage range: 2V to 6V
• High noise immunity: typical VNIH = VNIL = 28% of VCC
• Low power consumption: 80µA (max) ICC
• Balanced propagation delays: tPLH = tPHL
• TTL-compatible inputs and outputs
• Available in hermetic ceramic package for high reliability

Target Applications

• Data routing in 5G base station control boards
• Memory address decoding in automotive dashboard systems
• Signal selection in industrial PLC modules
• Multiplexing in aerospace telemetry units
• Function selection in medical imaging equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54HC253FK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
