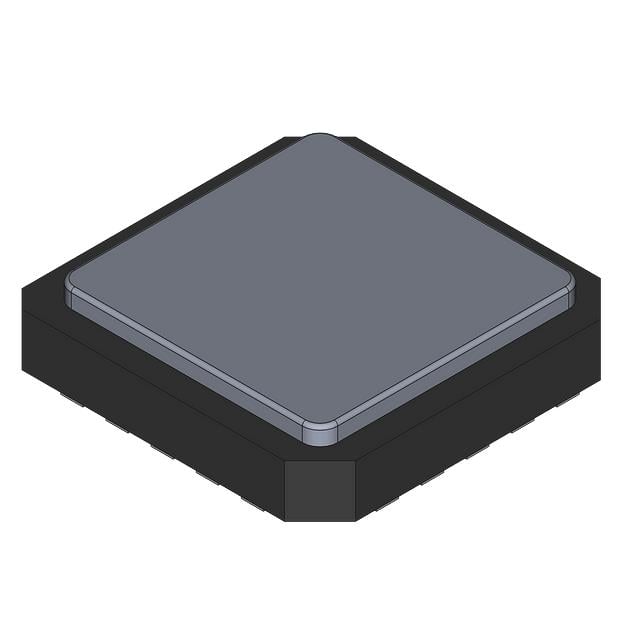

SNJ54LS20FK TI Logic Gates | Dual 4-Input NAND | Military Temp, -55 to +125°C

Product Overview

The SNJ54LS20FK is a dual 4-input NAND gate from Texas Instruments, part of the 54LS series designed for military and high-reliability applications. It operates over the full military temperature range of -55°C to +125°C and is available in a ceramic flat package (FK). This device provides the logic function Y = A·B·C·D with two independent gates, each with four inputs. It features low power consumption typical of LS logic, with a propagation delay of 15 ns and a fan-out of 10 LS loads. The SNJ54LS20FK is ideal for use in harsh environments where reliability and performance are critical.

Detailed Technical Specifications

Key Features

• Dual 4-input NAND gate configuration
• Low power consumption: 2 mW per gate typical
• High noise immunity: 0.4 V typical
• Wide operating temperature range: -55°C to +125°C
• Military-grade reliability
• Ceramic flat package for enhanced durability
• Compatible with TTL logic levels

Target Applications

• Military avionics systems (e.g., flight control computers)
• Satellite communication equipment
• Industrial control systems in extreme environments
• 5G base station control logic
• Automotive engine control units (ECUs) for off-road vehicles
• Medical devices requiring high reliability

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54LS20FK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
