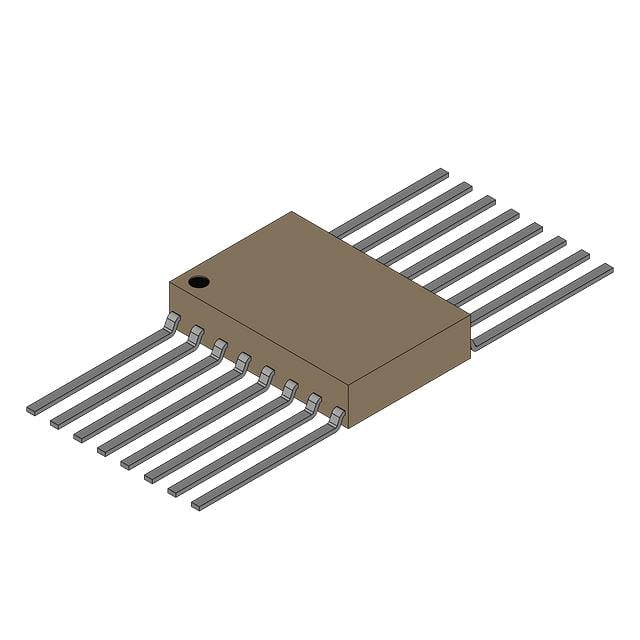

SNJ54LS258BW TI Logic IC | Quad 2-to-1 Data Selector/Multiplexer | 3-State Outputs

Product Overview

The SNJ54LS258BW is a high-performance quad 2-to-1 data selector/multiplexer from Texas Instruments, designed for military and aerospace applications. It features four independent multiplexers with common select and enable inputs, providing 3-state outputs for bus-oriented systems. This device is fabricated using advanced low-power Schottky technology, offering a balance of speed and power consumption. The SNJ54LS258BW is specified for operation over the full military temperature range (-55°C to +125°C) and is available in a hermetic ceramic package, ensuring reliability in harsh environments.

Detailed Technical Specifications

Key Features

• Quad 2-to-1 data selector/multiplexer with common select and enable
• 3-state outputs for bus-oriented applications
• Low power consumption: 22mW typical per gate
• High speed: propagation delay 12ns typical
• Wide operating temperature range: -55°C to +125°C
• Hermetic ceramic package for high reliability
• Direct interface with TTL logic levels
• Input clamp diodes for transient protection

Target Applications

• Military communication systems (e.g., AN/PRC-117G manpack radio)
• Aerospace avionics (e.g., flight control computers in F-35)
• Industrial control systems (e.g., PLC modules)
• Data acquisition systems (e.g., high-speed ADC multiplexing)
• 5G base station control logic (e.g., channel selection)
• Automotive infotainment (e.g., dashboard display routing)
