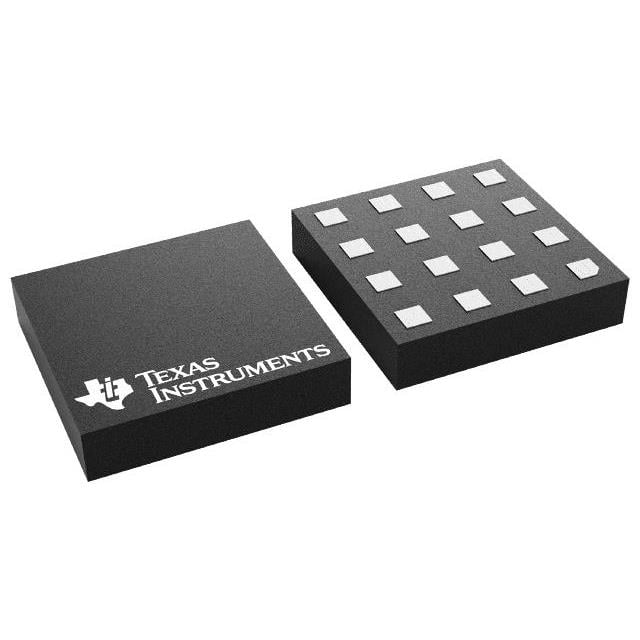

TCAL9538DTUR TI I2C I/O Expander | 16-X2QFN (1.6x1.6) | 8-bit, 1.65-5.5V

Product Overview

The TCAL9538DTUR from Texas Instruments is a low-voltage 8-bit I²C and SMBus I/O expander with interrupt output and configuration registers. It provides general-purpose remote I/O expansion for most microcontroller families via the I²C interface. The device features a wide operating voltage range of 1.65 V to 5.5 V, making it suitable for both 1.8 V and 3.3 V systems. Housed in a compact 16-X2QFN (1.6 mm x 1.6 mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 8-bit I/O expansion via I²C/SMBus
• Wide supply voltage range: 1.65 V to 5.5 V
• Low standby current: 1.5 µA typical
• Interrupt output for event-driven communication
• Configurable polarity inversion and internal pull-up resistors
• High drive capability: ±10 mA per I/O
• Small footprint: 1.6 mm x 1.6 mm X2QFN package
• Industrial temperature range: -40°C to +125°C

Target Applications

• 5G base stations: monitoring and control of power amplifiers, fans, and status LEDs
• Automotive dashboard: reading button inputs and controlling indicator lights
• Industrial automation: sensor interfacing and actuator control
• Portable electronics: GPIO expansion for battery management and user interface
• Server and networking equipment: system health monitoring and configuration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCAL9538DTUR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TCAL9538DTUR 是德州儀器（TI）推出的低電壓 8 位 I²C 和 SMBus I/O 擴展器，具有中斷輸出和配置寄存器。它通過 I²C 接口為大多數微控制器系列提供通用遠程 I/O 擴展。該器件的工作電壓範圍為 1.65 V 至 5.5 V，適用於 1.8 V 和 3.3 V 系統。採用緊湊的 16-X2QFN（1.6 mm x 1.6 mm）封裝，非常適合空間受限的應用。

詳細技術參數

核心特性

• 通過 I²C/SMBus 進行 8 位 I/O 擴展
• 寬電源電壓範圍：1.65 V 至 5.5 V
• 低待機電流：典型值 1.5 µA
• 中斷輸出，支持事件驅動通信
• 可配置極性反轉和內部上拉電阻
• 高驅動能力：每個 I/O ±10 mA
• 小尺寸：1.6 mm x 1.6 mm X2QFN 封裝
• 工業溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站：監控和控制功率放大器、風扇及狀態 LED
• 汽車儀表板：讀取按鍵輸入並控制指示燈
• 工業自動化：傳感器接口和執行器控制
• 便攜式電子設備：電池管理和用戶界面的 GPIO 擴展
• 服務器和網絡設備：系統健康監控和配置

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TCAL9538DTUR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
