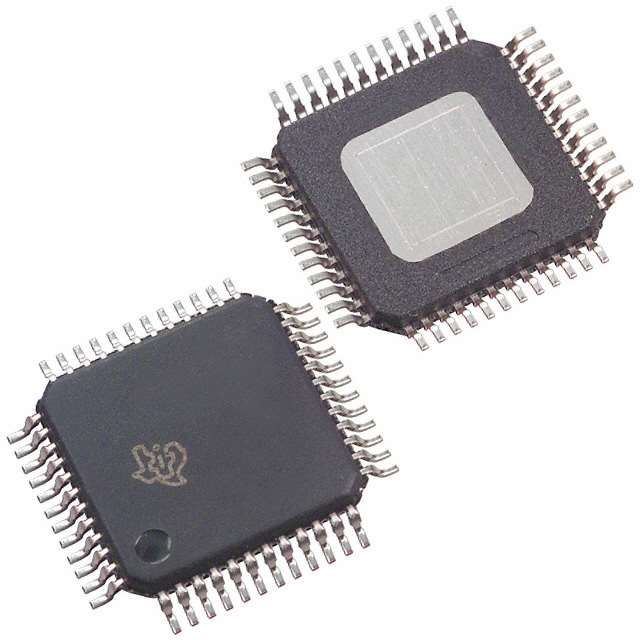

THS8136IPHPR TI Video DAC | 48-HTQFP (7x7) | 3-Ch, 8-Bit, 240 MSPS

Product Overview

The THS8136IPHPR is a high-performance, triple 8-bit digital-to-analog converter (DAC) from Texas Instruments, designed for video and graphics applications. It features three independent DAC channels with a maximum conversion rate of 240 MSPS, making it ideal for RGB or YUV video signal generation. The device operates from a single 3.3V supply and includes a 1.2V internal reference. It is housed in a compact 48-pin HTQFP (7x7 mm) package, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Triple 8-bit DAC with 240 MSPS update rate
• Single 3.3V supply operation
• Low power: 180 mW at 240 MSPS
• Internal 1.2V bandgap reference
• Programmable output current from 2.5 mA to 20 mA
• Power-down mode for reduced power consumption
• 3-wire serial interface for configuration
• Output short-circuit protection

Target Applications

• Video signal generation for 5G base station monitoring displays
• Automotive dashboard displays and infotainment systems
• Medical imaging equipment (e.g., ultrasound monitors)
• Broadcast video equipment (e.g., video mixers)
• Industrial test and measurement equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for THS8136IPHPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
