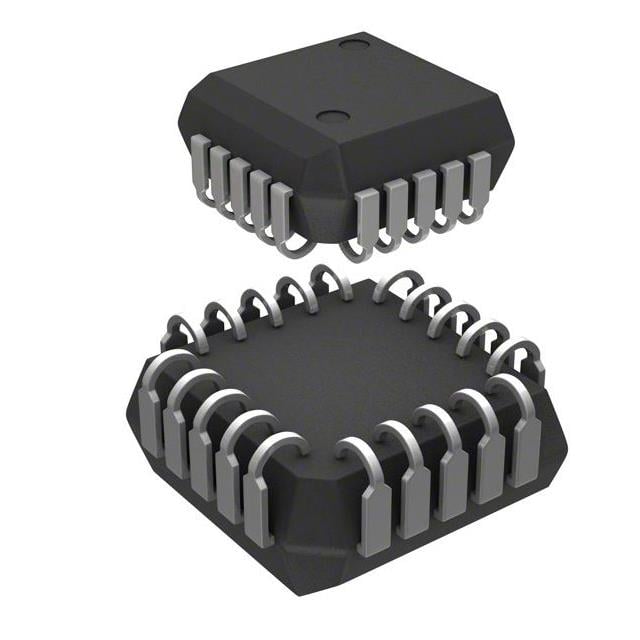

TIBPAL16R6-25CFN TI Programmable Logic | 20-PLCC (9x9) | 25ns, 16 Inputs, 6 Outputs

Product Overview

The TIBPAL16R6-25CFN is a high-performance Programmable Array Logic (PAL) device from Texas Instruments, designed for implementing custom logic functions with low power consumption and high speed. It features 16 inputs, 6 registered outputs, and a propagation delay of 25 ns, making it suitable for a wide range of digital logic applications. Housed in a compact 20-PLCC (9x9 mm) package, this device offers reliable performance for industrial and commercial systems.

Detailed Technical Specifications

Key Features

• High-speed 25 ns propagation delay
• 16 inputs and 6 registered outputs with programmable polarity
• Low power consumption: 180 mW typical
• Registered outputs with asynchronous reset
• Programmable AND array with fixed OR array
• Industry-standard architecture compatible with 20-pin PAL devices
• Available in 20-PLCC package for space-constrained designs

Target Applications

• 5G base station control logic for signal routing and timing
• Automotive dashboard display controllers for data multiplexing
• Industrial automation PLCs for custom logic implementation
• Telecommunications equipment for address decoding and state machines
• Medical device interface logic for data acquisition
