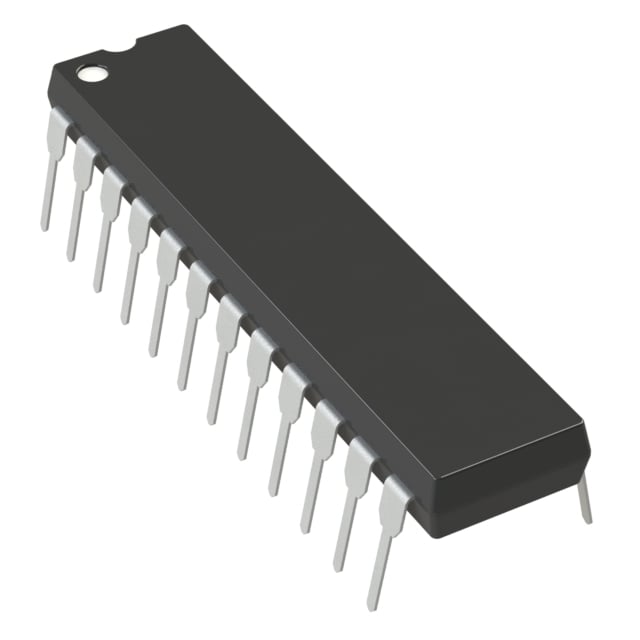

TIBPAL20R8-15CNT TI Programmable Logic | 24-PDIP | 20 Inputs, 8 Outputs, 15ns

Product Overview

The TIBPAL20R8-15CNT is a high-performance programmable array logic (PAL) device from Texas Instruments, designed for implementing custom logic functions in a 24-pin PDIP package. With 20 inputs and 8 registered outputs, it offers a propagation delay of 15 ns, making it suitable for high-speed control and interface applications. This device is part of the IMPACT-X family, providing reliable and flexible logic solutions for a wide range of digital systems.

Detailed Technical Specifications

Key Features

• High-speed programmable logic with 15 ns propagation delay
• 20 inputs and 8 registered outputs with programmable polarity
• Registered outputs with asynchronous preset and clear
• Programmable AND array with fixed OR structure
• Industry-standard architecture compatible with existing PAL designs
• Low power consumption typical 180 mW
• Available in 24-pin PDIP package for easy prototyping

Target Applications

• 5G base station control logic for signal routing and timing
• Automotive dashboard display controllers for data multiplexing
• Industrial automation PLC I/O interface logic
• Telecommunications equipment address decoding and bus arbitration
• Medical device data acquisition and control sequencing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TIBPAL20R8-15CNT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
