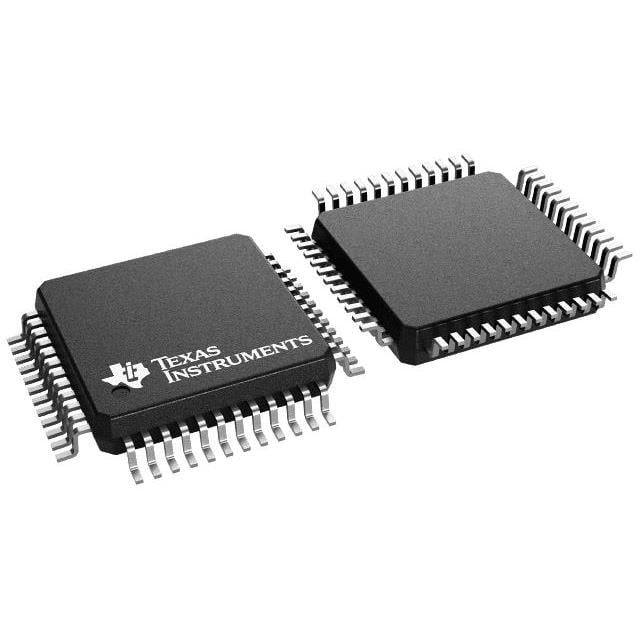

TL16C550CPTG4 TI UART IC | 48-LQFP（7X7） | 1.8V-5V, 1Mbps

Product Overview

The TL16C550CPTG4 is a single-channel Universal Asynchronous Receiver/Transmitter (UART) from Texas Instruments, designed for serial communication in industrial and embedded systems. It operates with a supply voltage range of 1.8V to 5V and supports data rates up to 1 Mbps. The device is housed in a 48-pin LQFP package (7x7 mm) and is compatible with the industry-standard 16C550 UART. It features a 16-byte FIFO for both transmit and receive, reducing CPU overhead. The TL16C550CPTG4 is ideal for applications requiring reliable asynchronous serial data transfer, such as point-of-sale terminals, networking equipment, and industrial automation.

Detailed Technical Specifications

Key Features

• Single-channel UART with 16-byte FIFO for reduced CPU intervention
• Wide supply voltage range (1.8V to 5V) for flexible system integration
• High-speed data transfer up to 1 Mbps
• Full modem control signals for reliable handshaking
• Auto flow control (RTS/CTS) and software flow control (XON/XOFF)
• Programmable data format (5-8 bits, parity, stop bits)
• Low power consumption with power-down mode
• Industrial temperature range (-40°C to +85°C)
• Compatible with industry-standard 16C550 UART

Target Applications

• Industrial automation controllers (e.g., PLCs, motor drives)
• Point-of-sale (POS) terminals and barcode scanners
• Networking equipment (e.g., routers, switches, 5G base stations)
• Embedded systems (e.g., single-board computers, IoT gateways)
• Medical devices (e.g., patient monitors, diagnostic equipment)
• Automotive infotainment and dashboard systems
• Test and measurement instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TL16C550CPTG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
