TL7715ACP TI Supervisory Circuit | 8-PDIP | 4.5V-18V Supply, 2.5% Threshold Accuracy

Product Overview

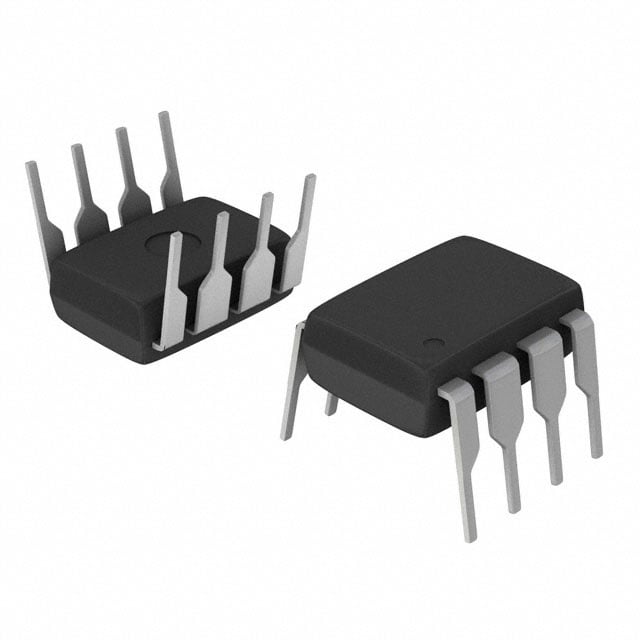

The TL7715ACP is a precision supervisory circuit from Texas Instruments, designed to monitor power supply voltages in microprocessor and digital systems. It provides a reset output during power-up, power-down, and brownout conditions. The device features a fixed threshold voltage of 4.55V (typical) with 2.5% accuracy, ensuring reliable system reset. Housed in an 8-pin PDIP package, it operates over a wide supply range of 4.5V to 18V and consumes only 500µA typical supply current. The TL7715ACP is ideal for applications requiring low power consumption and high accuracy.

Detailed Technical Specifications

Key Features

• Precision voltage monitoring with 2.5% threshold accuracy
• Wide supply voltage range: 4.5V to 18V
• Low supply current: 500µA typical
• 200ms reset delay ensures stable system startup
• Active-low reset output (open-drain)
• Guaranteed reset valid down to VCC = 1V
• 8-pin PDIP package for easy through-hole assembly

Target Applications

• 5G base station power supply monitoring
• Automotive dashboard and infotainment systems
• Industrial PLC and motor control systems
• Medical equipment (patient monitors, infusion pumps)
• Telecommunications equipment (routers, switches)
• Portable battery-powered devices
