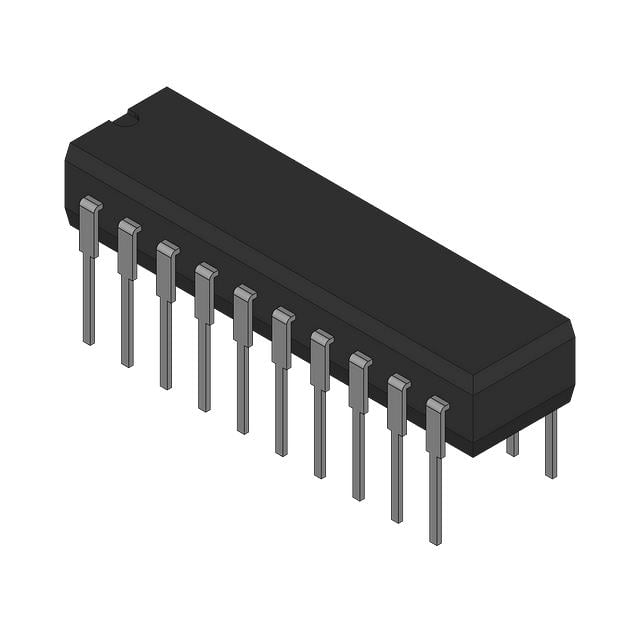

TLC2543MJB TI ADC | 20-CDIP | 12-Bit, 66kSPS, Serial Interface

Product Overview

The TLC2543MJB is a 12-bit, switched-capacitor, successive-approximation analog-to-digital converter (ADC) from Texas Instruments. It features a serial interface, 11 analog input channels, and a built-in sample-and-hold function. Housed in a hermetic 20-pin CDIP package, this device is designed for industrial and military temperature ranges (-55°C to +125°C).

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• 66 kSPS maximum sampling rate
• 11 analog input channels with multiplexer
• Built-in sample-and-hold function
• Serial interface compatible with SPI
• Low power consumption: 12.5 mW typical
• Wide operating temperature range
• Hermetic ceramic package for harsh environments

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., 5G base station monitoring)
• Automotive battery management systems (e.g., EV battery voltage sensing)
• Medical instrumentation (e.g., patient monitoring devices)
• Military and aerospace systems (e.g., avionics data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC2543MJB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
