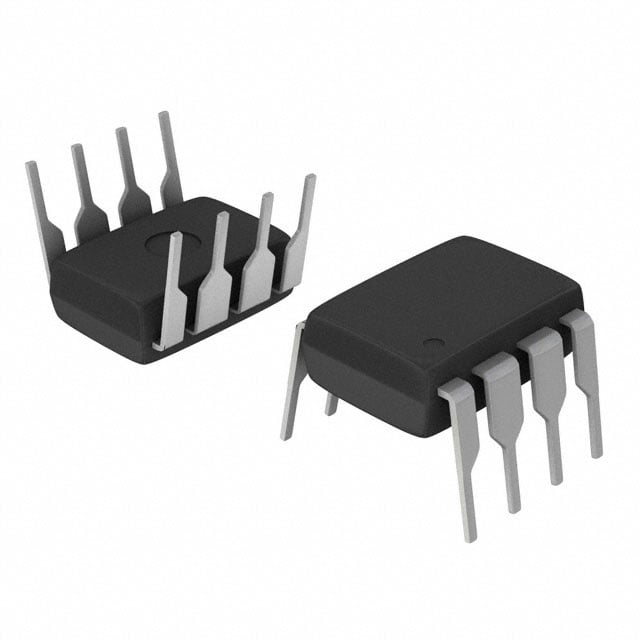

TLC549CP TI ADC | 8-PDIP | 8-bit, 40 kSPS, Serial Interface

Product Overview

The TLC549CP is a CMOS 8-bit successive approximation analog-to-digital converter (ADC) designed by Texas Instruments. It operates from a single 3V to 6V power supply and features a serial interface for communication with microprocessors or DSPs. The device offers a maximum conversion rate of 40,000 samples per second (40 kSPS) and is available in an 8-pin PDIP package. Its low power consumption and small footprint make it ideal for battery-powered and space-constrained applications.

Detailed Technical Specifications

Key Features

• 8-bit resolution with no missing codes
• Maximum conversion time: 17 μs
• Total unadjusted error: ±0.5 LSB max
• Single supply operation: 3V to 6V
• Low power: 1.5 mW typical at 3V
• Serial interface with chip select (CS) and data output (DATA OUT)
• Built-in sample-and-hold function
• Pin-compatible with TLC548 and TLC549

Target Applications

• 5G base station power monitoring: The TLC549CP can digitize voltage and current signals from power amplifiers and bias circuits, enabling real-time monitoring and fault detection.
• Automotive dashboard sensors: Used to convert analog signals from temperature, pressure, and position sensors for display and control in vehicle dashboards.
• Industrial process control: Suitable for low-speed data acquisition from sensors in factory automation systems.
• Battery management systems: Monitors cell voltages in portable devices and electric vehicles.
• Medical instrumentation: Digitizes signals from patient monitoring devices such as thermometers and blood pressure cuffs.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC549CP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
