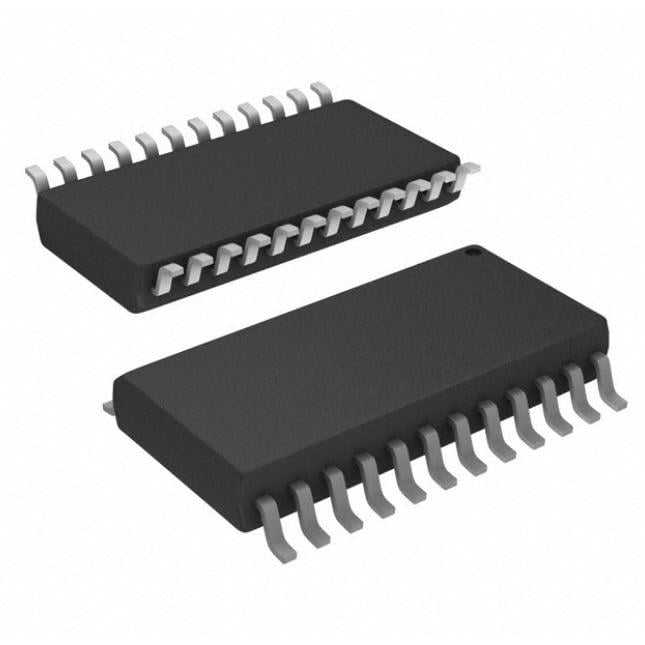

TLC5540CNS TI ADC | 24-SO | 40MSPS, 8-Bit

Product Overview

The TLC5540CNS is a high-speed, 8-bit analog-to-digital converter (ADC) from Texas Instruments. It features a maximum sampling rate of 40 MSPS and operates from a single 5V supply. The device is housed in a 24-pin SOIC package, making it suitable for space-constrained applications. With low power consumption and excellent dynamic performance, the TLC5540CNS is ideal for video digitizing, medical imaging, and communication systems.

Detailed Technical Specifications

Key Features

• 8-bit resolution with 40 MSPS sampling rate
• Low power: 150 mW typical at 40 MSPS
• Single 5V supply operation
• Internal sample-and-hold
• Three-state output for bus sharing
• Wide analog input bandwidth
• Pin-compatible with TLC5510

Target Applications

• Video digitizing (e.g., surveillance cameras, video capture cards)
• Medical imaging (e.g., ultrasound systems, digital X-ray)
• Communications (e.g., 5G base station IF sampling, software-defined radio)
• Instrumentation (e.g., oscilloscopes, data acquisition systems)
• Automotive (e.g., dashboard camera, ADAS sensor interfaces)
