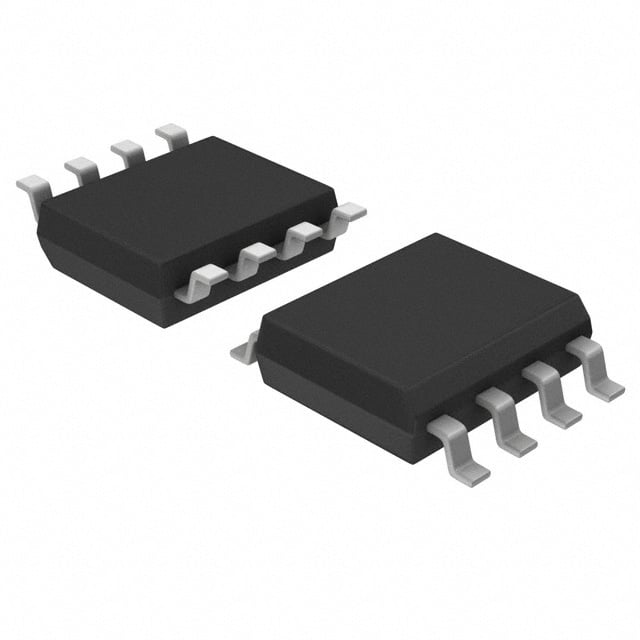

TLC5617ACD TI DAC 10-Bit Dual | 2.7V-5.5V, 1.25us Settling

Product Overview

The TLC5617ACD is a dual 10-bit voltage output digital-to-analog converter (DAC) from Texas Instruments. It operates from a single 2.7V to 5.5V supply and features a 3-wire serial interface compatible with SPI, QSPI, and Microwire. The device offers a settling time of 1.25 µs typical, making it suitable for high-speed control loops and waveform generation. The TLC5617ACD is available in a 14-pin SOIC package and is specified over the industrial temperature range of -40°C to +85°C.

Detailed Technical Specifications

Key Features

• Dual 10-bit DAC in a small package
• Low power consumption: 1.5 mW at 3V
• Rail-to-rail output swing
• Power-on reset to 0V
• Buffered reference input
• Glitch energy: 1 nV-s
• Pin-compatible with TLC5615 (single) and TLC5618 (dual 12-bit)

Target Applications

• 5G base station: Automatic bias control for power amplifiers
• Automotive dashboard: Instrument cluster calibration and display control
• Industrial process control: PLC analog output modules
• Medical equipment: Patient monitoring system setpoint control
• Test and measurement: Arbitrary waveform generation
• Audio processing: Volume control and tone adjustment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5617ACD. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
