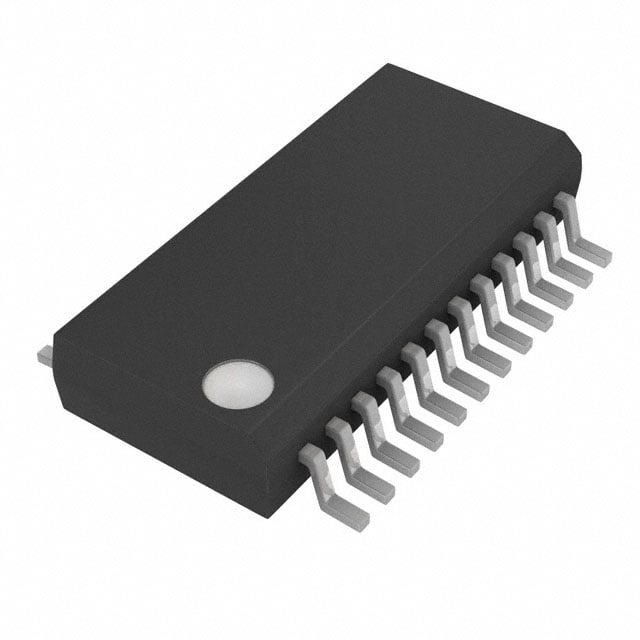

TLC5929DBQ TI LED Driver | 24-SSOP | 16-Channel, Constant Current

Product Overview

The TLC5929DBQ is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a shift register, data latch, and constant-current output stages, enabling precise control of LED brightness and color. The device operates from a 3V to 5.5V supply and supports a maximum output current of 120 mA per channel, with global brightness control via an external resistor. Its 24-pin SSOP package offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 5-bit dot correction and 7-bit global brightness control
• Serial data interface with 30 MHz shift clock
• Output current accuracy: ±3% (typical) between channels
• Built-in thermal shutdown and open/short LED detection
• Low power consumption: 10 mA (typical) quiescent current
• Wide output voltage compliance up to 17 V
• Compact 24-SSOP package for space-saving designs

Target Applications

• LED signage and message boards
• Automotive dashboard and interior lighting (e.g., infotainment displays)
• Industrial control panels and indicators
• 5G base station status indicators
• General-purpose constant-current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5929DBQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
