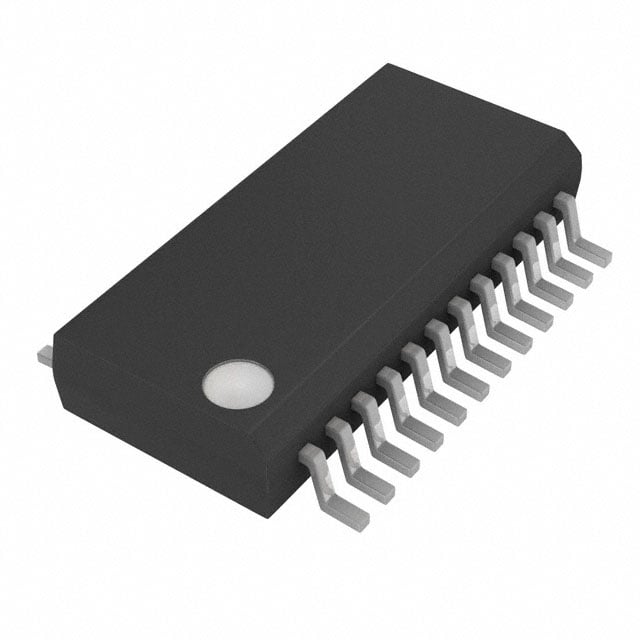

TLC5929DBQR TI LED Driver | 24-SSOP | 16-Ch, 50mA, PWM Dimming

Product Overview

The TLC5929DBQR is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a 16-bit shift register, data latches, and constant-current output stages. Each channel can be independently controlled with 7-bit global brightness adjustment and 8-bit individual PWM dimming, enabling smooth and precise brightness control. The device operates from a 3.0V to 5.5V supply and can sink up to 50mA per channel. The 24-pin SSOP package (DBQR) offers a compact footprint for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 50 mA capability
• 8-bit individual PWM dimming for each channel
• 7-bit global brightness adjustment
• 30 MHz data transfer rate for high refresh rates
• Built-in thermal shutdown and open-load detection
• Low quiescent current (typical 1 mA)
• Wide supply voltage range (3.0 V to 5.5 V)
• Compact 24-SSOP package

Target Applications

• 5G base station status indicators and panel lighting
• Automotive dashboard backlighting and infotainment displays
• Industrial control panel LED indicators
• LED signage and video walls
• General-purpose constant-current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5929DBQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
