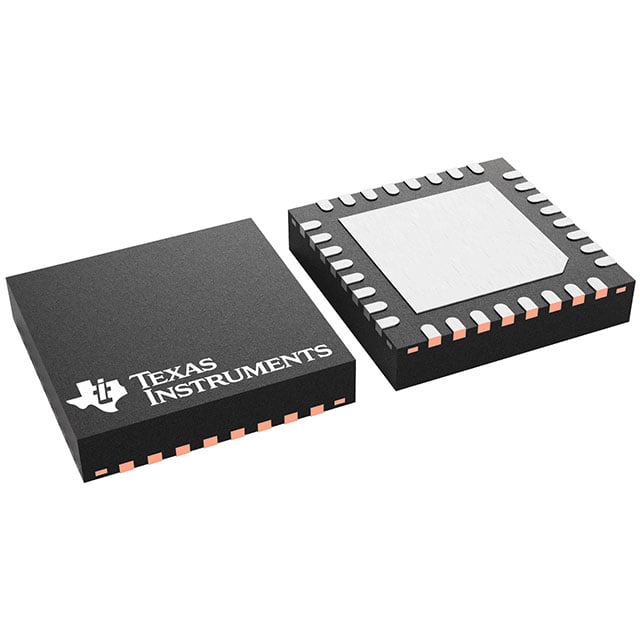

TLC5942RHBR TI LED Driver | 32-VQFN (5x5) | 16-Ch, 50mA, PWM Dimming

Product Overview

The TLC5942RHBR from Texas Instruments is a 16-channel constant-current sink LED driver designed for high-performance display and lighting applications. It features a 50mA per channel output capability with 12-bit (4096 steps) PWM grayscale control, enabling smooth and precise brightness adjustments. The device operates from a 3.0V to 5.5V supply voltage and is housed in a compact 32-pin VQFN (5x5 mm) package, making it ideal for space-constrained designs. With a maximum data transfer rate of 30 MHz, it supports daisy-chaining for multiple driver ICs, simplifying PCB layout and reducing microcontroller I/O requirements.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 50 mA capability
• 12-bit PWM grayscale control for smooth dimming
• ±1% channel-to-channel current matching
• 30 MHz serial interface for high-speed data transfer
• Daisy-chainable for multiple ICs without extra pins
• Built-in thermal shutdown and open-LED detection
• Low power consumption with 1 µA standby current

Target Applications

• 5G base station status indicators and panel lighting
• Automotive dashboard backlighting and infotainment displays
• Industrial control panels and HMI lighting
• LED video walls and signage
• Smart home lighting systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5942RHBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLC5942RHBR 是德州儀器（TI）推出的16通道恆流沉入式LED驅動器，專為高性能顯示和照明應用設計。每通道最大輸出電流50 mA，支持12位（4096級）PWM灰度控制，實現平滑精確的亮度調節。器件工作電壓範圍為3.0V至5.5V，採用緊湊的32引腳VQFN（5x5 mm）封裝，適合空間受限的設計。最高30 MHz的數據傳輸速率支持菊花鏈連接多個驅動器IC，簡化PCB佈局並減少微控制器I/O需求。

詳細技術參數

核心特性

• 16路恆流沉入輸出，每路50 mA
• 12位PWM灰度控制，實現平滑調光
• ±1%通道間電流匹配
• 30 MHz串行接口，支持高速數據傳輸
• 可菊花鏈連接多個IC，無需額外引腳
• 內置熱關斷和開路LED檢測
• 低功耗，待機電流僅1 µA

典型應用場景

• 5G基站狀態指示燈和面板照明
• 汽車儀表盤背光和娛樂顯示屏
• 工業控制面板和人機界面照明
• LED視頻牆和標牌
• 智能家居照明系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLC5942RHBR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
