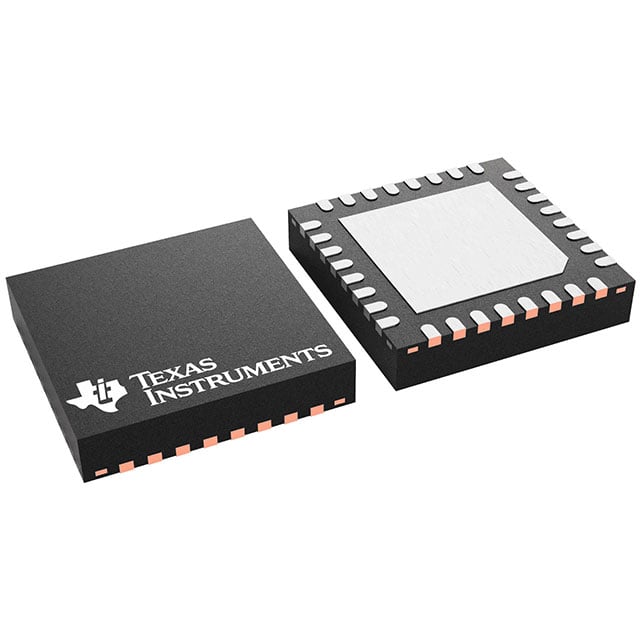

TLC5946RHBR TI LED Driver | 32-VQFN (5x5) | 16-Ch, Dot Correction

Product Overview

The TLC5946RHBR is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It features dot correction, grayscale control, and error detection, making it ideal for precise LED brightness management. Housed in a compact 32-VQFN (5x5 mm) package, it offers a space-saving solution for modern electronics.

Detailed Technical Specifications

Key Features

• 16 constant-current sink channels with programmable current
• 6-bit dot correction for brightness uniformity
• 12-bit grayscale PWM control for smooth dimming
• Error detection (LED open/short) via serial interface
• Thermal shutdown protection
• 3-wire serial interface (SDI, SCLK, LATCH)
• Low power consumption

Target Applications

• LED video displays (e.g., indoor/outdoor signage)
• Automotive lighting (e.g., dashboard backlight, ambient lighting)
• 5G base station status indicators
• Industrial control panels
• Consumer electronics (e.g., smart home devices)
