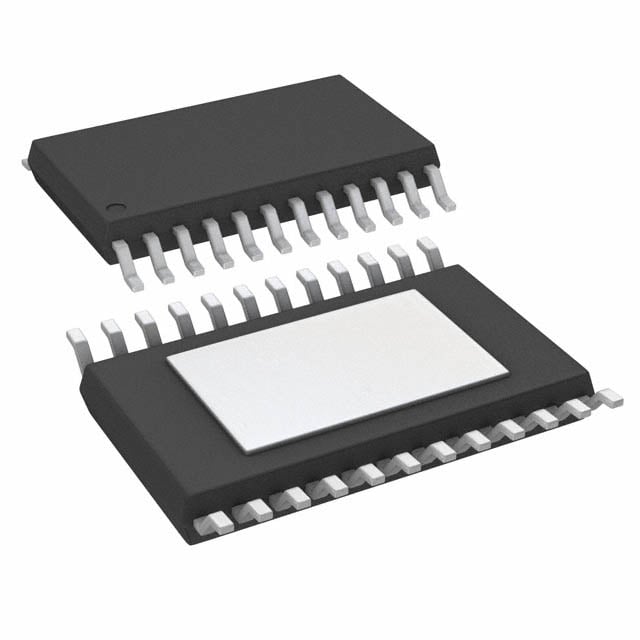

TLC5949PWP TI LED Driver | 24-HTSSOP | 16-Ch, 50mA, PWM Dimming

Product Overview

The TLC5949PWP is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It features a 50mA per channel output capability with 12-bit PWM grayscale control, enabling smooth and precise brightness adjustments. The device operates over a wide supply voltage range of 3.0V to 5.5V and is housed in a compact 24-HTSSOP package, making it suitable for space-constrained designs. With its built-in error detection and thermal shutdown, the TLC5949PWP ensures reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• 16 constant-current sink channels with 50mA max per channel
• 12-bit PWM grayscale control for smooth dimming
• Serial interface with daisy-chain capability
• Built-in LED open and short detection
• Thermal shutdown and overcurrent protection
• Wide supply voltage range: 3.0V to 5.5V
• Compact 24-HTSSOP package

Target Applications

• 5G base station status indicators
• Automotive dashboard backlighting
• Industrial control panel displays
• LED matrix signage and video walls
• Smart home lighting systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5949PWP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
