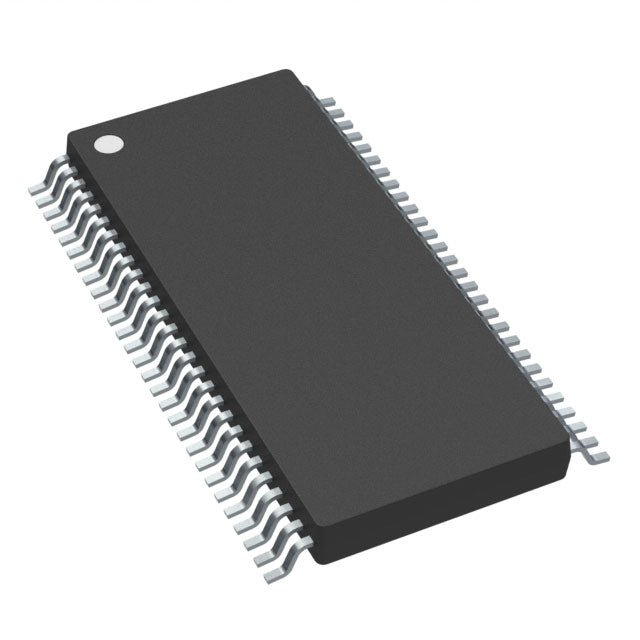

TLC5955DCAR TI LED Driver | 56-HTSSOP | 48-Channel, 16-Bit PWM

Product Overview

The TLC5955DCAR is a 48-channel, constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a 16-bit (65,536 levels) PWM grayscale control with a 7-bit (128 steps) global brightness adjustment, enabling precise and smooth LED brightness control. The device operates from a 3.0V to 5.5V supply and features a serial interface for data communication. Its 56-pin HTSSOP package (PowerPAD) ensures efficient thermal dissipation, making it suitable for compact, high-density designs.

Detailed Technical Specifications

Key Features

• 48 constant-current sink outputs with 16-bit PWM grayscale control
• 7-bit global brightness adjustment for each channel
• Adjustable output current from 0.5 mA to 35 mA via external resistor
• Serial interface with 35 MHz maximum clock frequency
• Built-in LED open/short detection and thermal shutdown
• Low power consumption with 1 µA standby current
• Wide operating voltage range (3.0 V to 5.5 V)
• Compact 56-HTSSOP package with exposed pad for thermal management

Target Applications

• LED video walls and signage (e.g., indoor/outdoor displays)
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels and indicators
• 5G base station status indicators
• General-purpose constant-current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5955DCAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
