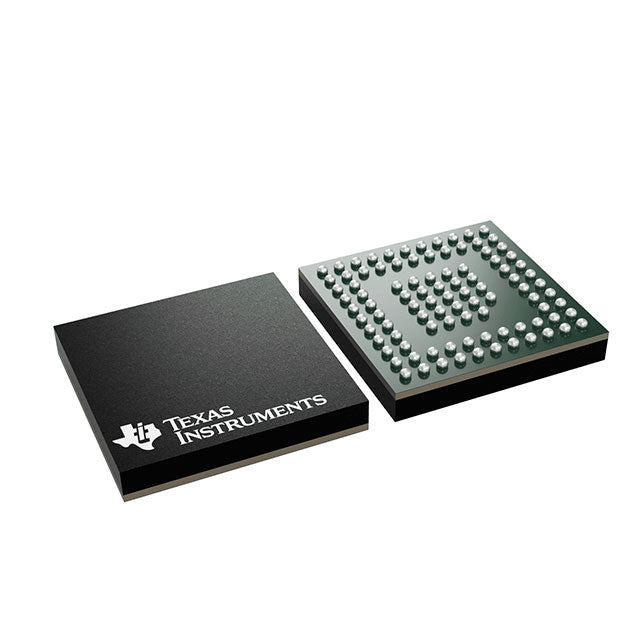

TLC6983ZXLR TI LED Driver | 96-NFBGA(6x6) | 48-Channel, 16-Bit PWM

Product Overview

The TLC6983ZXLR from Texas Instruments is a high-performance 48-channel constant-current LED driver designed for precise brightness control in large-scale LED display and lighting applications. Housed in a compact 96-NFBGA (6x6 mm) package, it integrates 16-bit PWM dimming and 8-bit global brightness adjustment, enabling smooth, flicker-free visuals with high contrast ratios. The device supports a wide supply voltage range of 3.0V to 5.5V and delivers up to 50 mA per channel, making it suitable for demanding environments such as outdoor signage, automotive lighting, and industrial displays.

Detailed Technical Specifications

Key Features

• 48 constant-current outputs with 16-bit PWM for high-resolution dimming
• 8-bit global brightness control for uniform display adjustment
• Low quiescent current (5 µA typical in shutdown mode)
• Built-in error detection (open/short LED, thermal shutdown)
• Wide operating temperature range (-40°C to +125°C)
• Compact 96-NFBGA package saves PCB space
• SPI-compatible serial interface for daisy-chaining multiple devices

Target Applications

• Large-scale LED video walls (e.g., for stadiums, concerts, and control rooms)
• Automotive exterior lighting (e.g., adaptive headlights, taillights)
• Industrial signage and information displays (e.g., airport flight boards, railway station indicators)
• 5G base station status indicators and lighting
• Dashboard backlighting in automotive and avionics
• Architectural lighting (e.g., building facade illumination)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC6983ZXLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLC6983ZXLR 是德州儀器（TI）推出的一款高性能48通道恆流LED驅動器，專為大規模LED顯示和照明應用中的精確亮度控制而設計。它採用緊湊的96-NFBGA（6x6 mm）封裝，集成16位PWM調光和8位全局亮度調節，能夠實現平滑、無閃爍的視覺效果和高對比度。該器件支持3.0V至5.5V的寬電源電壓範圍，每通道可提供高達50 mA的電流，適用於戶外標牌、汽車照明和工業顯示器等苛刻環境。

詳細技術參數

核心特性

• 48路恆流輸出，16位PWM實現高分辨率調光
• 8位全局亮度控制，實現均勻顯示調節
• 低靜態電流（關斷模式下典型值5 µA）
• 內置錯誤檢測（開路/短路LED，熱關斷）
• 寬工作溫度範圍（-40°C 至 +125°C）
• 緊湊的96-NFBGA封裝節省PCB空間
• SPI兼容串行接口，支持多器件級聯

典型應用場景

• 大規模LED視頻牆（例如體育場、音樂會、控制室）
• 汽車外部照明（例如自適應前照燈、尾燈）
• 工業標牌和信息顯示（例如機場航班顯示屏、火車站指示牌）
• 5G基站狀態指示燈和照明
• 汽車和航空儀表板背光
• 建築照明（例如建築物立面照明）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLC6983ZXLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
