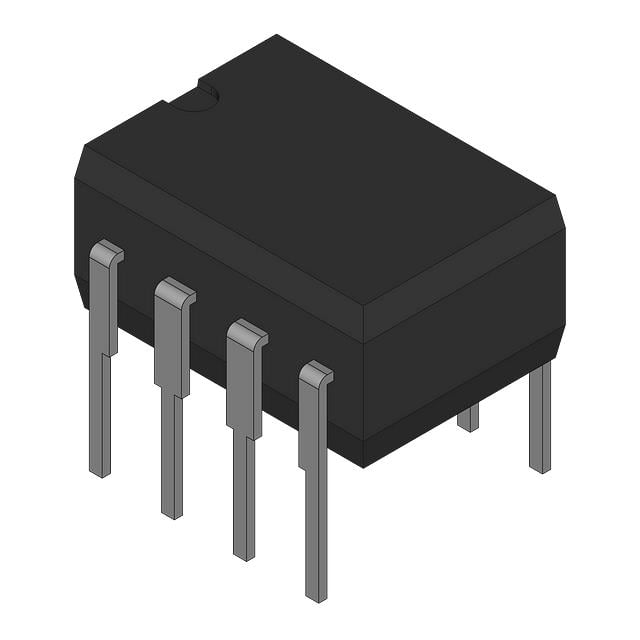

TLE2426MJGB TI Precision Voltage Reference | 2.5V, 0.4% Accuracy, Low Drift

Product Overview

The TLE2426MJGB from Texas Instruments is a precision, low-dropout voltage reference offering a fixed 2.5V output with high accuracy and stability. It is designed for applications requiring a stable reference voltage, such as data converters, sensors, and power supply monitoring. The device features a low dropout voltage of typically 0.2V at 20mA, making it suitable for low-voltage systems. With an initial accuracy of ±0.4% and a temperature coefficient as low as 20ppm/°C, the TLE2426MJGB ensures reliable performance over a wide temperature range of -55°C to +125°C. Housed in a hermetic ceramic package, it is ideal for harsh environments.

Detailed Technical Specifications

Key Features

• Precision 2.5V output with ±0.4% initial accuracy
• Low dropout voltage: 0.2V typical at 20mA
• Low temperature coefficient: 20ppm/°C typical
• Wide supply voltage range: 2.7V to 20V
• Low quiescent current: 100µA typical
• High output current capability: 20mA
• Hermetic ceramic package for harsh environments
• Operating temperature range: -55°C to +125°C

Target Applications

• Precision data acquisition systems (e.g., ADS1256 ADC reference)
• Industrial process control (e.g., PLC analog input modules)
• Automotive electronics (e.g., engine control unit voltage reference)
• 5G base station power management (e.g., bias supply for RF amplifiers)
• Medical instrumentation (e.g., patient monitoring systems)
• Portable battery-powered devices (e.g., handheld multimeters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLE2426MJGB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLE2426MJGB 是德州儀器（TI）推出的一款精密低壓差電壓參考源，提供固定的 2.5V 輸出，具有高精度和高穩定性。該器件專為需要穩定參考電壓的應用而設計，例如數據轉換器、傳感器和電源監控。其典型壓差僅為 0.2V（20mA 時），非常適合低電壓系統。初始精度為 ±0.4%，溫度係數低至 20ppm/°C，確保在 -55°C 至 +125°C 的寬溫度範圍內性能可靠。採用密封陶瓷封裝，適用於惡劣環境。

詳細技術參數

核心特性

• 精密 2.5V 輸出，初始精度 ±0.4%
• 低壓差：典型值 0.2V（20mA 時）
• 低溫度係數：典型值 20ppm/°C
• 寬電源電壓範圍：2.7V 至 20V
• 低靜態電流：典型值 100µA
• 高輸出電流能力：20mA
• 密封陶瓷封裝，適用於惡劣環境
• 工作溫度範圍：-55°C 至 +125°C

典型應用場景

• 精密數據採集系統（例如 ADS1256 ADC 參考）
• 工業過程控制（例如 PLC 模擬輸入模塊）
• 汽車電子（例如發動機控制單元電壓參考）
• 5G 基站電源管理（例如射頻放大器偏置電源）
• 醫療儀器（例如病人監護系統）
• 便攜式電池供電設備（例如手持萬用表）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLE2426MJGB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
