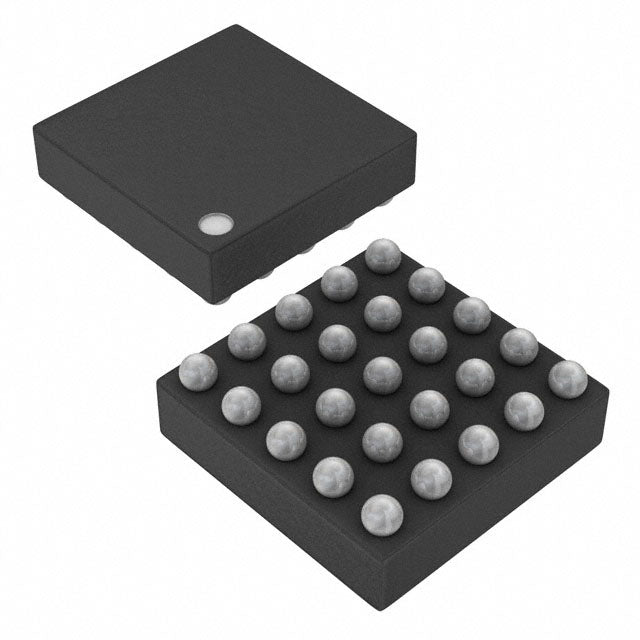

TLV320AIC3253IYZKR TI Audio CODEC | 25-DSBGA | 2Ch ADC/DAC, 192kHz

Product Overview

The TLV320AIC3253IYZKR is a low-power, high-performance stereo audio codec from Texas Instruments, featuring a 25-ball DSBGA package. It integrates dual-channel ADC and DAC with support for up to 192 kHz sampling rate, making it ideal for portable and embedded audio applications. The device includes a programmable microphone bias, digital microphone interface, and a flexible audio processing engine.

Detailed Technical Specifications

Key Features

• Stereo audio DAC with 100dB SNR and stereo ADC with 93dB SNR
• Low power consumption: 14mW for stereo 48kHz playback
• Programmable microphone bias and digital microphone interface
• Built-in audio processing: AGC, noise filter, EQ, and 3D effects
• Flexible clocking with PLL supporting multiple input frequencies
• I2C/SPI control and I2S/LJ/DSP/TDM audio interfaces
• Ultra-small 25-ball DSBGA package (0.4mm pitch)

Target Applications

• Smartphones and tablets
• Portable audio players and recorders
• Wireless headsets and earphones
• Voice-controlled smart speakers (e.g., Amazon Echo, Google Home)
• Automotive infotainment systems (e.g., dashboard audio)
• 5G base station audio processing
• Industrial IoT voice interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV320AIC3253IYZKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV320AIC3253IYZKR 是德州儀器（TI）推出的一款低功耗、高性能立體聲音頻編解碼器，採用 25 球 DSBGA 封裝。它集成了雙通道 ADC 和 DAC，支持高達 192 kHz 的採樣率，非常適合便攜式和嵌入式音頻應用。該器件包括可編程麥克風偏置、數字麥克風接口和靈活的音頻處理引擎。

詳細技術參數

核心特性

• 立體聲 DAC 信噪比 100dB，立體聲 ADC 信噪比 93dB
• 低功耗：48kHz 立體聲播放時僅 14mW
• 可編程麥克風偏置和數字麥克風接口
• 內置信號處理：AGC、噪聲濾波、均衡器和 3D 效果
• 靈活的時鐘管理，內置 PLL 支持多種輸入頻率
• I2C/SPI 控制接口和 I2S/LJ/DSP/TDM 音頻接口
• 超小型 25 球 DSBGA 封裝（0.4mm 間距）

典型應用場景

• 智能手機和平板電腦
• 便攜式音頻播放器和錄音機
• 無線耳機和耳塞
• 語音控制智能音箱（如 Amazon Echo、Google Home）
• 汽車信息娛樂系統（如儀表板音頻）
• 5G 基站音頻處理
• 工業物聯網語音接口

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV320AIC3253IYZKR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
