TLV320AIC36IZQER TI Audio Codec | 80-BGAMICROSTARJUNIOR（5X5） | 2-Ch ADC/DAC, 96kHz

Product Overview

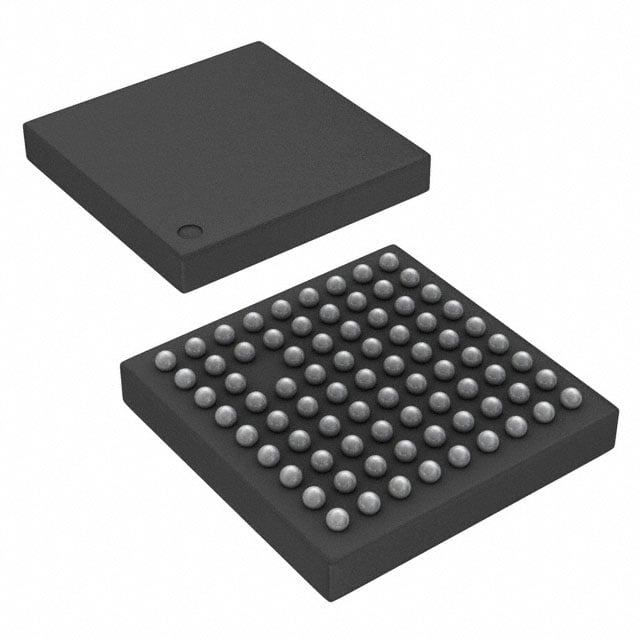

The TLV320AIC36IZQER is a low-power stereo audio codec from Texas Instruments, designed for portable and embedded audio applications. It features a 2-channel ADC and DAC with support for sample rates up to 96 kHz, integrated microphone bias, and programmable gain amplifiers. The device is housed in a compact 80-ball BGA MICROSTAR JUNIOR (5x5 mm) package, making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Stereo audio DAC with 100 dB SNR
• Stereo audio ADC with 92 dB SNR
• Low power: 14 mW at 48 kHz
• Programmable microphone bias (2.5V or 2.75V)
• Digital volume control with 0.5 dB steps
• Built-in digital interpolation and decimation filters
• I2C/SPI control interface
• Audio serial interface supporting I2S, left-justified, right-justified, DSP, and PCM modes
• Flexible clocking with PLL
• RoHS compliant

Target Applications

• Smartphones and tablets
• Portable media players
• Voice recorders
• Hands-free car kits
• 5G base station audio processing
• Automotive dashboard infotainment
• IoT voice-enabled devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV320AIC36IZQER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV320AIC36IZQER 是德州儀器（TI）推出的一款低功耗立體聲音頻編解碼器，專為便攜式和嵌入式音頻應用設計。它包含2通道ADC和DAC，支持高達96 kHz的採樣率，集成麥克風偏置和可編程增益放大器。器件採用緊湊的80球BGA MICROSTAR JUNIOR（5x5 mm）封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 立體聲音頻DAC，信噪比100 dB
• 立體聲音頻ADC，信噪比92 dB
• 低功耗：48 kHz時僅14 mW
• 可編程麥克風偏置（2.5V或2.75V）
• 數字音量控制，步進0.5 dB
• 內置數字插值和抽取濾波器
• I2C/SPI控制接口
• 音頻串行接口支持I2S、左對齊、右對齊、DSP和PCM模式
• 靈活的時鐘方案，帶PLL
• 符合RoHS標準

典型應用場景

• 智能手機和平板電腦
• 便攜式媒體播放器
• 錄音筆
• 車載免提套件
• 5G基站音頻處理
• 汽車儀表盤信息娛樂系統
• 物聯網語音設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV320AIC36IZQER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
