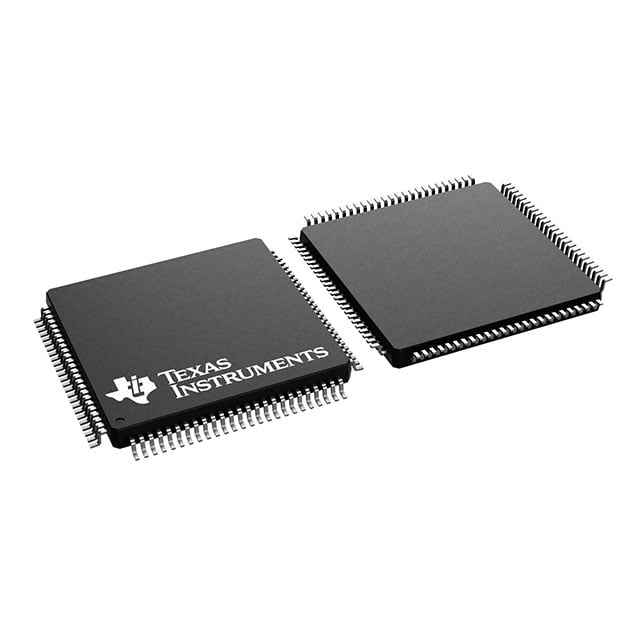

TM4C123GH6PZT TI ARM Cortex-M4 MCU | 100-LQFP (14x14) | 256KB Flash, 32KB SRAM

Product Overview

The TM4C123GH6PZT is a high-performance 32-bit ARM Cortex-M4 microcontroller from Texas Instruments, part of the Tiva C Series. It features a floating-point unit (FPU) for efficient signal processing, 256KB of flash memory, and 32KB of SRAM. Housed in a 100-pin LQFP package (14x14mm), it is designed for embedded control applications requiring real-time processing and rich peripheral integration.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4 core with FPU for efficient digital signal processing
• Up to 80 MHz operation with single-cycle multiply and hardware divide
• 256 KB flash and 32 KB SRAM for complex applications
• Integrated USB 2.0 OTG with PHY
• Multiple serial interfaces: UART, I2C, SPI, CAN
• Two 12-bit ADCs with up to 12 analog inputs
• Advanced motion control PWM and quadrature encoder interface
• Six 64-bit timers and eight 32-bit timers
• Battery-backed hibernation module for low-power operation
• JTAG and Serial Wire Debug (SWD) for programming and debugging

Target Applications

• Industrial automation controllers (e.g., PLC, motor drives)
• Building automation (e.g., HVAC controllers, smart lighting)
• Medical devices (e.g., patient monitoring, portable diagnostic equipment)
• Consumer electronics (e.g., smart home hubs, gaming peripherals)
• Automotive aftermarket (e.g., dashboard displays, telematics units)
• 5G base station control modules (e.g., power management, sensor interfaces)
• Robotics (e.g., servo control, sensor fusion)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C123GH6PZT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
