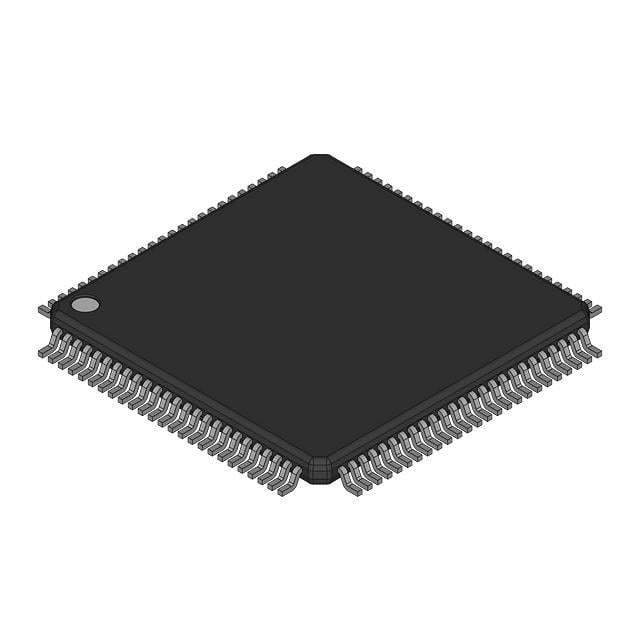

TMS320AV411PJM TI DSP | 16-Bit Fixed-Point, 40MHz, 5V

Product Overview

The TMS320AV411PJM is a high-performance 16-bit fixed-point digital signal processor (DSP) from Texas Instruments, part of the TMS320C1x generation. It operates at 40 MHz, delivering 10 MIPS, and is designed for cost-sensitive embedded control and signal processing applications. The device features a modified Harvard architecture with separate program and data buses, enabling efficient execution of DSP algorithms. It includes on-chip RAM, ROM, and peripherals such as a serial port and timer, making it suitable for a wide range of industrial and consumer applications.

Detailed Technical Specifications

Key Features

• 16-bit fixed-point DSP core with 10 MIPS performance at 40 MHz
• Modified Harvard architecture for parallel instruction and data access
• On-chip 544-word RAM and 4K-word ROM for program and data storage
• Single 5V power supply for simplified system design
• Integrated serial port and timer for communication and timing
• Low-power modes for energy-efficient operation
• Fully static CMOS technology for low power consumption
• Compatible with TMS320C1x development tools and software

Target Applications

The TMS320AV411PJM is ideal for embedded control and signal processing applications, including:

• Motor control in industrial drives and robotics
• Digital answering machines and voice processing
• Modems and data communication equipment
• Instrumentation and measurement systems
• Consumer electronics such as digital cameras and audio players
• Automotive control systems (e.g., engine management, ABS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320AV411PJM. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320AV411PJM 是德州儀器（TI）推出的一款高性能16位定點數字信號處理器（DSP），屬於 TMS320C1x 系列。該器件工作頻率為40 MHz，性能達到10 MIPS，專為成本敏感的嵌入式控制和信號處理應用而設計。它採用改進的哈佛架構，具有獨立的程序總線和數據總線，能夠高效執行 DSP 算法。片上集成 RAM、ROM 以及串行端口和定時器等外設，適用於多種工業和消費類應用。

詳細技術參數

核心特性

• 16位定點 DSP 內核，40 MHz 時鐘下性能達 10 MIPS
• 改進的哈佛架構，支持並行指令和數據訪問
• 片上 544 字 RAM 和 4K 字 ROM，用於程序和數據存儲
• 單一 5V 電源供電，簡化系統設計
• 集成串行端口和定時器，用於通信和定時
• 低功耗模式，實現節能運行
• 全靜態 CMOS 技術，功耗低
• 兼容 TMS320C1x 開發工具和軟件

典型應用場景

TMS320AV411PJM 適用於嵌入式控制和信號處理應用，包括：

• 工業驅動和機器人中的電機控制
• 數字答錄機和語音處理
• 調製解調器和數據通信設備
• 儀器儀表和測量系統
• 消費電子產品，如數碼相機和音頻播放器
• 汽車控制系統（如發動機管理、ABS）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320AV411PJM 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
