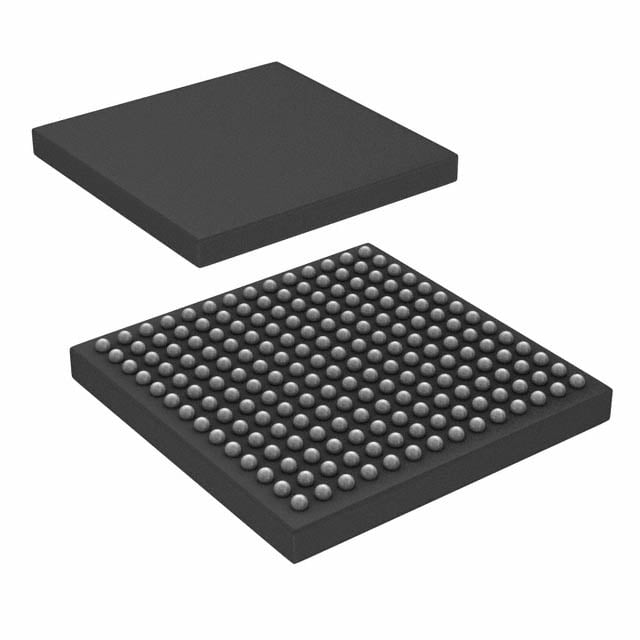

TMS320C5504AZCH10 TI DSP | 196-NFBGA(10X10) | 100MHz, 320KB RAM

Product Overview

The TMS320C5504AZCH10 is a fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C55x family. It operates at a clock speed of up to 100 MHz and features a dual-MAC architecture, enabling high-performance signal processing for audio, industrial, and communication applications. The device is housed in a compact 196-ball NFBGA (10x10 mm) package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-performance fixed-point DSP core with dual-MAC architecture
• Low power consumption with multiple power-down modes
• Rich peripheral set including I2C, SPI, McBSP, and UART
• On-chip bootloader and memory protection unit
• Up to 32 general-purpose I/O pins
• Real-time clock (RTC) support

Target Applications

• Audio processing: portable audio players, voice recognition systems
• Industrial control: motor control, power line communication
• Communication: VoIP gateways, baseband processing for 5G small cells
• Automotive: infotainment systems, digital instrument clusters
• Medical: hearing aids, patient monitoring devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C5504AZCH10. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C5504AZCH10 是德州儀器 TMS320C55x 系列的一款定點數位信號處理器 (DSP)。它最高可運行在 100 MHz 時脈頻率，並具有雙 MAC 架構，可實現音頻、工業和通信應用的高性能信號處理。該器件採用緊湊的 196 球 NFBGA (10x10 mm) 封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 高性能定點 DSP 核心，雙 MAC 架構
• 低功耗，多種省電模式
• 豐富的外設：I2C, SPI, McBSP, UART
• 片上引導加載器和存儲保護單元
• 最多 32 個通用 I/O 引腳
• 支持實時時鐘 (RTC)

典型應用場景

• 音頻處理：便攜式音頻播放器、語音識別系統
• 工業控制：電機控制、電力線通信
• 通信：VoIP 網關、5G 小基站基帶處理
• 汽車：信息娛樂系統、數字儀表盤
• 醫療：助聽器、病人監護設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C5504AZCH10 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
