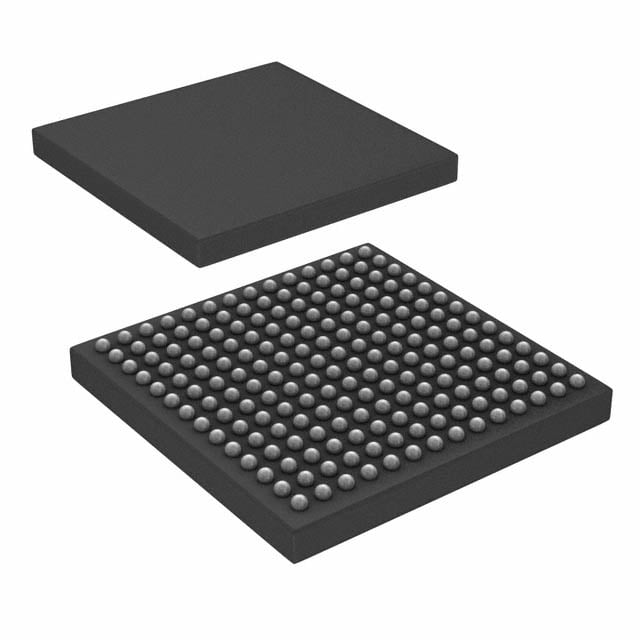

TMS320C5505AZCHA12 TI DSP | 196-NFBGA(10X10) | 120MHz, 320KB RAM

Product Overview

The TMS320C5505AZCHA12 is a fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C5505 series. It operates at a clock speed of 120 MHz and features a 32-bit CPU with dual 17×17 multipliers and two 40-bit accumulators. The device is housed in a 196-ball NFBGA package with a 10×10 mm body size, making it suitable for space-constrained applications. It integrates 320 KB of on-chip RAM, including 128 KB of dual-access RAM (DARAM) and 192 KB of single-access RAM (SARAM), along with various peripherals such as USB 2.0, I2S, SPI, UART, and a 10-bit ADC. The C5505 is designed for low-power operation, with multiple power-down modes and a core voltage of 1.05V to 1.3V.

Detailed Technical Specifications

Key Features

• Low-power fixed-point DSP core with 120 MHz performance
• 320 KB on-chip RAM for efficient data buffering
• Integrated USB 2.0 for connectivity
• Multiple serial interfaces (I2C, I2S, SPI, UART) for peripheral integration
• 10-bit ADC for analog signal acquisition
• Small 10×10 mm NFBGA package for compact designs
• Multiple power-down modes for extended battery life

Target Applications

The TMS320C5505AZCHA12 is ideal for audio processing, voice recognition, biometric authentication, and portable medical devices. Specific examples include: 5G base station audio beamforming, automotive dashboard voice control, hearing aids, portable ECG monitors, and smart home voice assistants.
