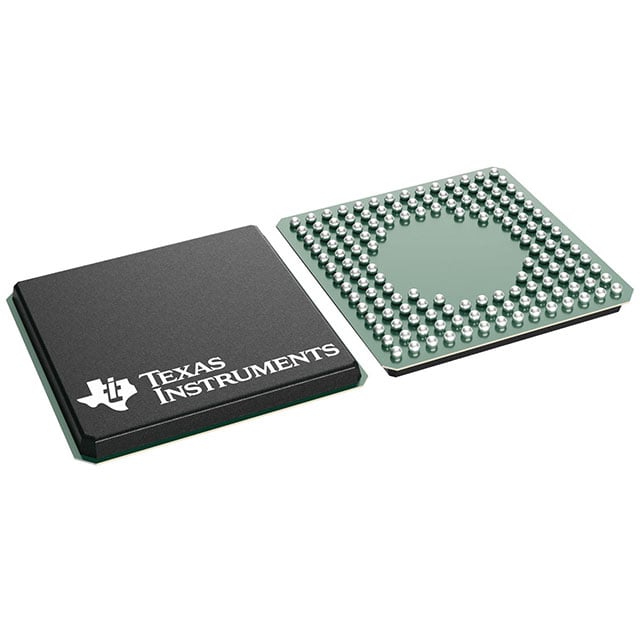

TMS320C5532AZHHA10 TI DSP | 144-BGAMICROSTAR (12X12) | 200MHz, 320KB RAM

Product Overview

The TMS320C5532AZHHA10 is a fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C55x family. It operates at up to 200 MHz and features 320 KB of on-chip RAM, making it ideal for low-power, high-performance embedded applications. The device is housed in a 144-ball BGA MICROSTAR package (12x12 mm) and supports a wide range of peripherals including I2C, SPI, UART, and USB 2.0.

Detailed Technical Specifications

Key Features

• High-performance fixed-point DSP core with 200 MHz clock speed
• Low power consumption with multiple power-down modes
• 320 KB on-chip RAM for data and program storage
• 128 KB on-chip ROM for boot code
• Rich peripheral set including USB 2.0, I2C, SPI, UART, and McBSP
• Integrated 10-bit ADC with 4 channels
• Compact 144-ball BGA MICROSTAR package (12x12 mm) for space-constrained designs
• Industrial temperature range (-40°C to 85°C)

Target Applications

• 5G base station control and monitoring
• Automotive dashboard and infotainment systems
• Industrial motor control and drives
• Medical devices like portable ultrasound and patient monitors
• Audio processing for smart speakers and hearing aids
• Power line communication (PLC) modems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C5532AZHHA10. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C5532AZHHA10 是德州儀器 TMS320C55x 系列的一款定點數字信號處理器 (DSP)。它最高工作頻率為 200 MHz，內置 320 KB RAM，非常適合低功耗、高性能的嵌入式應用。該器件採用 144 球 BGA MICROSTAR 封裝 (12x12 mm)，支持 I2C、SPI、UART 和 USB 2.0 等多種外設。

詳細技術參數

核心特性

• 高性能定點 DSP 核心，時鐘頻率 200 MHz
• 低功耗，支持多種省電模式
• 320 KB 片上 RAM，用於數據和程序存儲
• 128 KB 片上 ROM，用於啟動代碼
• 豐富的外設，包括 USB 2.0、I2C、SPI、UART 和 McBSP
• 集成 10 位 ADC，4 通道
• 緊湊的 144 球 BGA MICROSTAR 封裝 (12x12 mm)，適合空間受限的設計
• 工業級溫度範圍 (-40°C 至 85°C)

典型應用場景

• 5G 基站控制與監控
• 汽車儀表盤和資訊娛樂系統
• 工業電機控制和驅動
• 醫療設備，如便攜式超聲和病人監護儀
• 智能音箱和助聽器的音頻處理
• 電力線通信 (PLC) 調製解調器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C5532AZHHA10 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
