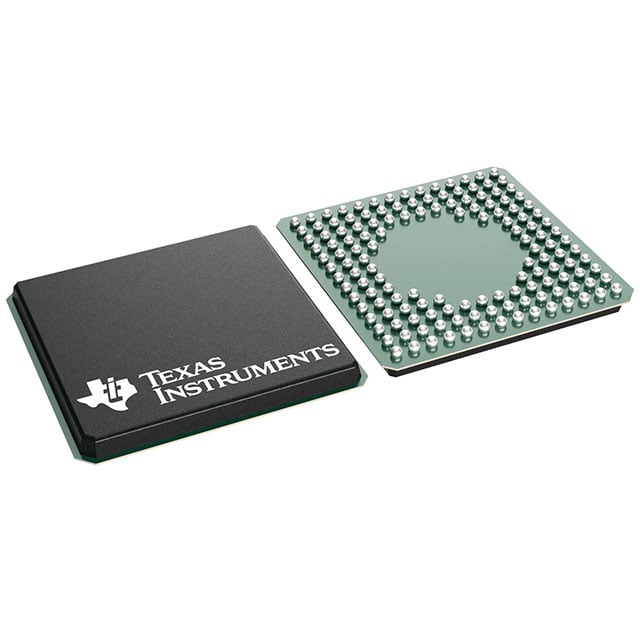

TMS320C5533AZHHA05 TI DSP | 144-BGAMICROSTAR (12X12) | 200MHz, 320KB RAM

Product Overview

The TMS320C5533AZHHA05 is a fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C55x family. It operates at up to 200 MHz and features 320 KB of on-chip RAM, making it ideal for low-power, high-performance embedded applications. The device comes in a compact 144-ball BGA MICROSTAR package (12x12 mm) for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-performance 200 MHz C55x core
• Low power consumption with multiple power-down modes
• 320 KB on-chip RAM for data and program storage
• 128 KB on-chip ROM for boot code
• Rich peripheral set including I2C, SPI, UART, and McBSP
• 4-channel DMA for efficient data transfer
• Compact 144-ball BGA package (12x12 mm)
• Industrial temperature range

Target Applications

The TMS320C5533AZHHA05 is suitable for a variety of embedded applications, including:

• 5G base station control and monitoring
• Automotive dashboard audio processing
• Industrial motor control
• Portable medical devices
• Smart grid communication modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C5533AZHHA05. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C5533AZHHA05 是德州儀器 TMS320C55x 系列的一款定點數位信號處理器 (DSP)。它最高運行於 200 MHz，內建 320 KB RAM，非常適合低功耗、高性能的嵌入式應用。該器件採用緊湊的 144 球 BGA MICROSTAR 封裝 (12x12 mm)，適用於空間受限的設計。

詳細技術參數

核心特性

• 高性能 200 MHz C55x 核心
• 低功耗，支援多種省電模式
• 320 KB 片上 RAM，用於數據和程式存儲
• 128 KB 片上 ROM，用於啟動代碼
• 豐富的外設，包括 I2C、SPI、UART 和 McBSP
• 4 通道 DMA，實現高效數據傳輸
• 緊湊的 144 球 BGA 封裝 (12x12 mm)
• 工業級溫度範圍

典型應用場景

TMS320C5533AZHHA05 適用於多種嵌入式應用，包括：

• 5G 基站控制與監控
• 汽車儀表板音頻處理
• 工業電機控制
• 便攜式醫療設備
• 智能電網通信模塊

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C5533AZHHA05 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
