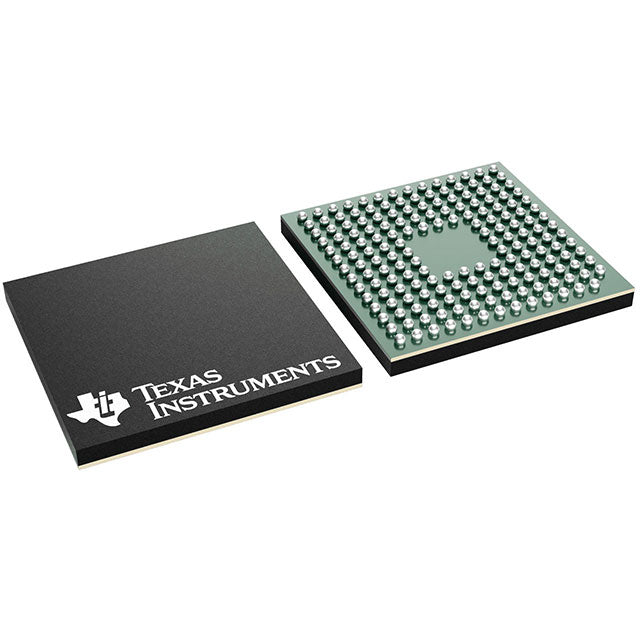

TMS320VC5509AZAY TI DSP | 179-NFBGA(12x12) | 200MHz, 128KB RAM

Product Overview

The TMS320VC5509AZAY is a high-performance, low-power fixed-point digital signal processor (DSP) from Texas Instruments, part of the TMS320C55x generation. It operates at up to 200 MHz and features 128KB of on-chip RAM, making it ideal for power-sensitive applications requiring real-time signal processing. The device is housed in a 179-ball NFBGA package (12x12 mm), offering a compact footprint for space-constrained designs.

Detailed Technical Specifications

Key Features

• High-performance 200 MHz C55x core with dual MAC units
• Ultra-low power consumption (0.12 mW/MIPS)
• 128 KB on-chip RAM for data and program storage
• 32 KB on-chip ROM for boot code
• 24 KB instruction cache for enhanced throughput
• 6-channel DMA controller for efficient data transfers
• 3 multichannel buffered serial ports (McBSPs) and I2C interface
• Two 32-bit general-purpose timers
• Real-time clock (RTC) with separate power domain
• On-chip PLL for flexible clock generation

Target Applications

• 5G base station control and monitoring
• Automotive dashboard audio processing
• Portable medical devices (e.g., hearing aids, patient monitors)
• Industrial motor control and power inverters
• Consumer audio equipment (e.g., soundbars, smart speakers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320VC5509AZAY. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320VC5509AZAY 是德州儀器 (TI) 推出的一款高性能、低功耗定點數字信號處理器 (DSP)，屬於 TMS320C55x 系列。其工作頻率高達 200 MHz，內置 128KB RAM，非常適合需要實時信號處理且對功耗敏感的應用。器件採用 179 球 NFBGA 封裝 (12x12 mm)，佔用空間小，適用於緊湊型設計。

詳細技術參數

核心特性

• 高性能 200 MHz C55x 內核，帶雙 MAC 單元
• 超低功耗 (0.12 mW/MIPS)
• 128 KB 片上 RAM，用於數據和程序存儲
• 32 KB 片上 ROM，用於啟動代碼
• 24 KB 指令緩存，提高吞吐量
• 6 通道 DMA 控制器，實現高效數據傳輸
• 3 個多通道緩衝串行端口 (McBSP) 和 I2C 接口
• 兩個 32 位通用定時器
• 實時時鐘 (RTC)，帶獨立電源域
• 片上 PLL，實現靈活的時鐘生成

典型應用場景

• 5G 基站控制與監控
• 汽車儀表盤音頻處理
• 便攜式醫療設備 (如助聽器、病人監護儀)
• 工業電機控制與電源逆變器
• 消費類音頻設備 (如條形音箱、智能音箱)

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320VC5509AZAY 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
