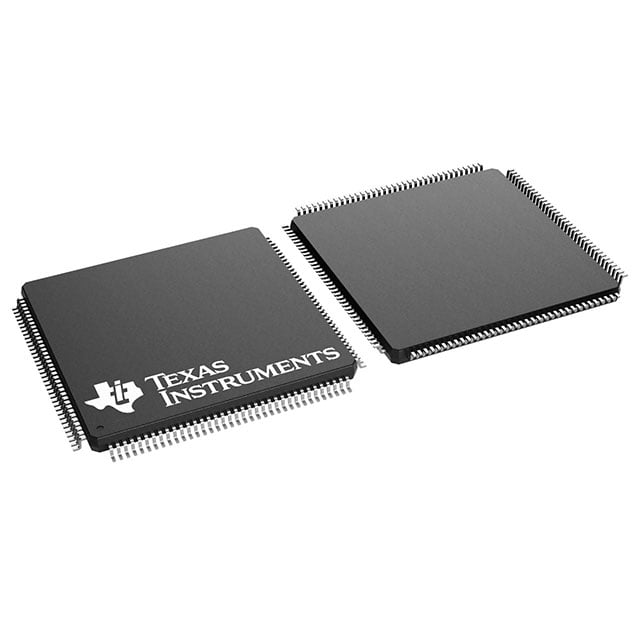

TMS5700714APGEQQ1 TI Microcontroller | 144-LQFP (20x20) | ARM Cortex-R4, 2MB Flash

Product Overview

The TMS5700714APGEQQ1 is a high-performance automotive-grade microcontroller from Texas Instruments, part of the TMS570 family based on the ARM Cortex-R4F floating-point processor core. It is designed for safety-critical applications requiring high reliability and real-time performance. The device features a dual-core lockstep architecture for fault detection, making it suitable for ISO 26262 ASIL-D compliant systems. It comes in a 144-pin LQFP package with a 20x20 mm body, offering a compact solution for embedded control.

Detailed Technical Specifications

Key Features

• Dual-core lockstep ARM Cortex-R4F for fault detection
• Up to 180 MHz operation with 2 MB flash and 256 KB RAM
• Integrated safety features: ECC on memory, MPU, CRC, and BIST
• Rich peripheral set: CAN, LIN, Ethernet, SPI, I2C, UART
• Two 12-bit ADCs with up to 24 channels
• Wide operating temperature range (-40°C to +125°C)
• 144-pin LQFP package for easy PCB assembly

Target Applications

• Automotive: Engine control units (ECU), transmission control, brake systems (ABS/ESC), airbag controllers
• Industrial: Programmable logic controllers (PLC), motor drives, robotics
• Medical: Patient monitoring systems, infusion pumps
• Communication: 5G base station control modules, network switches
• Consumer: Dashboard display controllers, advanced driver-assistance systems (ADAS)
