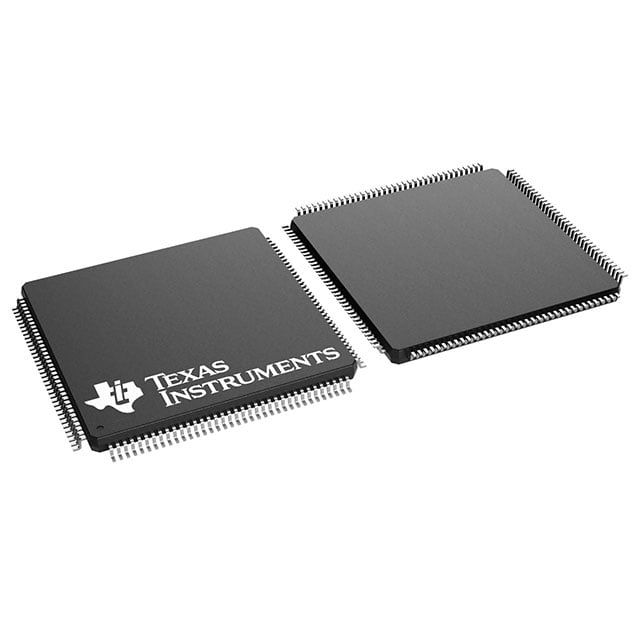

TMS5701114CPGEQQ1 TI Microcontroller | 144-LQFP (20x20) | ARM Cortex-R4F, 160MHz

Product Overview

The TMS5701114CPGEQQ1 is a high-performance automotive-grade microcontroller from Texas Instruments, part of the TMS570 family based on the ARM Cortex-R4F floating-point processor core. It operates at up to 160 MHz and is designed for safety-critical applications requiring high reliability and real-time performance. The device is housed in a 144-pin LQFP package with a 20x20 mm footprint, making it suitable for space-constrained designs. It features up to 1 MB of flash memory and 128 KB of RAM, along with a rich set of peripherals including CAN, LIN, SPI, and I2C interfaces. The TMS5701114CPGEQQ1 is AEC-Q100 qualified and supports ISO 26262 ASIL-D safety level, making it ideal for automotive and industrial safety systems.

Detailed Technical Specifications

Key Features

• ARM Cortex-R4F processor with FPU for real-time control
• Up to 160 MHz operation with 1 MB flash and 128 KB RAM
• Dual-core lockstep architecture for safety-critical applications
• Integrated memory protection unit (MPU) and ECC on flash and RAM
• Comprehensive peripheral set: CAN, LIN, SPI, I2C, ADC, PWM
• Supports ISO 26262 ASIL-D and IEC 61508 SIL-3
• AEC-Q100 qualified for automotive applications
• Low-power modes for energy efficiency

Target Applications

• Automotive: Engine control units (ECU), transmission control, brake systems (ABS/ESC), airbag systems, electric power steering
• Industrial: Programmable logic controllers (PLC), motor drives, robotics, safety relays
• Medical: Patient monitoring systems, infusion pumps, diagnostic equipment
• Communication: 5G base station control, network switches, industrial gateways
• Consumer: Dashboard displays, infotainment systems, advanced driver-assistance systems (ADAS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS5701114CPGEQQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
