TPD12S015YFFR TI HDMI ESD Protection | 28-DSBGA (2.79X1.59) | 4-Channel, ±15kV ESD

Product Overview

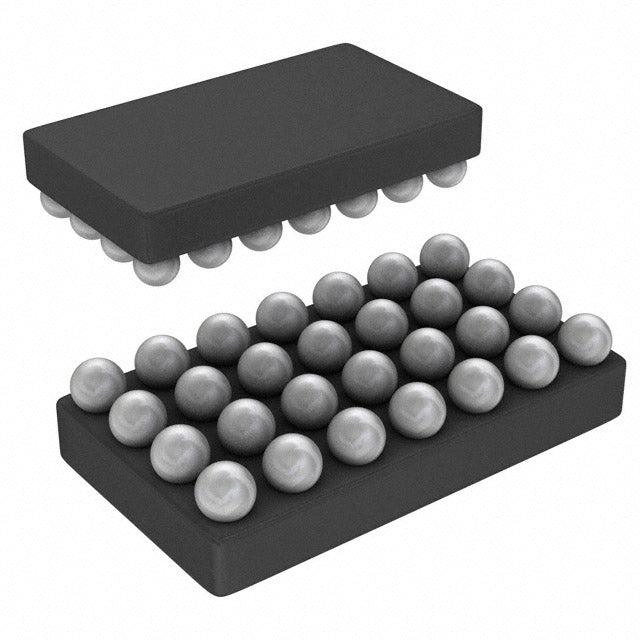

The TPD12S015YFFR from Texas Instruments is a highly integrated HDMI ESD protection device designed to safeguard HDMI interfaces against electrostatic discharge (ESD) and other transient voltage events. Housed in a compact 28-DSBGA (2.79 mm x 1.59 mm) package, it provides robust protection for up to four high-speed data lines and control lines, making it ideal for space-constrained applications in consumer electronics, automotive infotainment, and industrial displays.

Detailed Technical Specifications

Key Features

• Integrated ESD protection for 4 high-speed data lines (e.g., HDMI DDC, CEC, HPD)
• Ultra-low capacitance (0.5 pF) ensures signal integrity for HDMI 2.0 and DisplayPort
• High ESD withstand capability: ±15 kV contact and air discharge per IEC 61000-4-2
• Low dynamic resistance (0.5 Ω) for excellent clamping performance
• Wide operating voltage range (1.65 V to 5.5 V) compatible with various logic levels
• Small footprint 28-DSBGA package saves board space
• RoHS compliant and lead-free

Target Applications

• 5G base stations: Protecting HDMI interfaces in remote radio units (RRUs) and baseband units (BBUs)
• Automotive dashboard displays: HDMI port protection for infotainment systems and digital clusters
• Consumer electronics: Smart TVs, set-top boxes, gaming consoles, and streaming devices
• Industrial monitors: HDMI ports in human-machine interfaces (HMIs) and industrial PCs
• Medical imaging equipment: Protecting HDMI connections in ultrasound machines and patient monitors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPD12S015YFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
