TPD12S016RKTR TI HDMI ESD Protection | 24-UQFN (4x2) | 12-Channel, ±12kV Contact

Product Overview

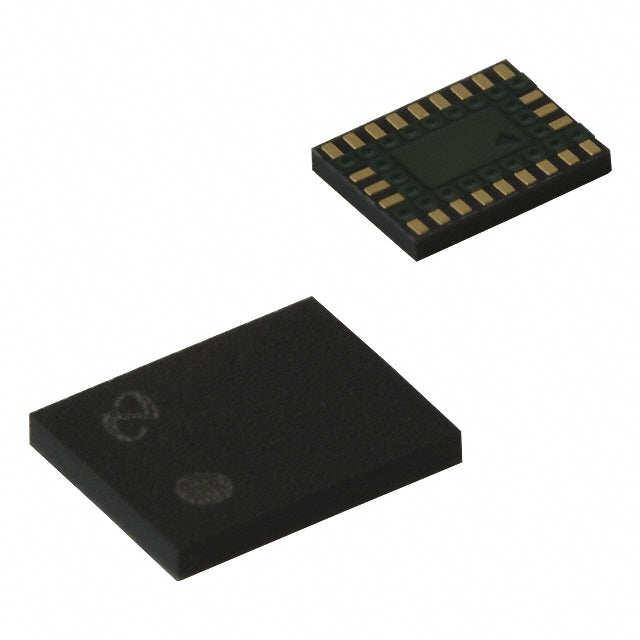

The TPD12S016RKTR from Texas Instruments is a 12-channel integrated ESD protection and EMI filter device designed for HDMI interfaces. It provides robust protection against electrostatic discharge (ESD) up to ±12 kV contact discharge (IEC 61000-4-2) and ±15 kV air discharge, while also offering common-mode filtering for EMI reduction. Housed in a compact 24-pin UQFN (4x2 mm) package, it is ideal for space-constrained applications requiring high signal integrity and protection.

Detailed Technical Specifications

Key Features

• Integrated ESD protection and EMI filtering for 12 HDMI lines
• Low capacitance (0.8 pF) ensures minimal signal degradation
• Common-mode filter with 100 MHz cutoff for EMI suppression
• Industry-leading ESD protection: ±12 kV contact, ±15 kV air
• Ultra-small 24-UQFN (4x2 mm) package saves board space
• Supports HDMI 1.4 and 2.0 data rates

Target Applications

• 5G base stations (HDMI interface for monitoring)
• Automotive infotainment and dashboard displays
• HDMI ports in laptops, tablets, and smartphones
• Digital signage and video walls
• Set-top boxes and media players

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPD12S016RKTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
