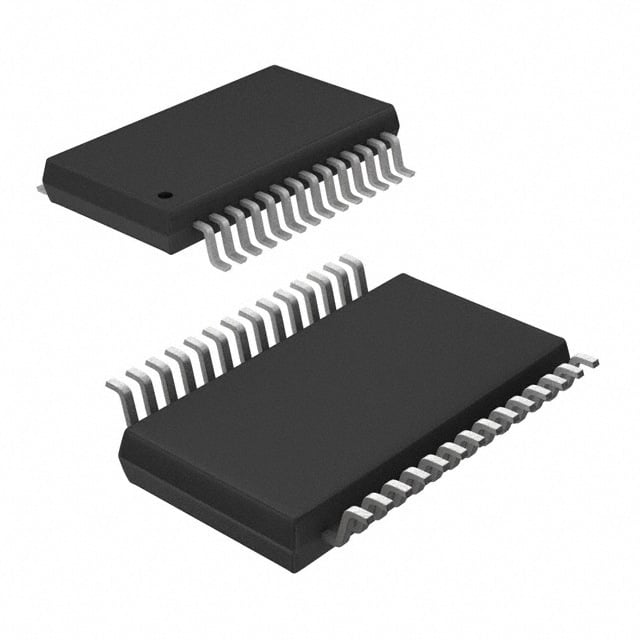

TPS2206ADB TI Power Management IC | 30-SSOP | Dual PCMCIA/CardBus Power Switch

Product Overview

The TPS2206ADB from Texas Instruments is a dual-slot PCMCIA and CardBus power interface switch designed for portable and desktop applications. It integrates two independent power switches with current limiting and thermal protection, supporting 3.3V, 5V, and 12V outputs. Housed in a compact 30-pin SSOP package, it provides a complete power management solution for PC Card slots.

Detailed Technical Specifications

Key Features

• Dual independent PCMCIA/CardBus power switches
• Integrated current limiting and thermal shutdown
• Low quiescent current (150 µA typical)
• 3.3V, 5V, and 12V outputs per slot
• Logic-controlled enable pins
• Undervoltage lockout (UVLO)
• Short-circuit protection
• Compact 30-pin SSOP package

Target Applications

• Notebook and desktop computers with PCMCIA/CardBus slots
• Industrial embedded systems requiring PC Card interfaces
• Portable data terminals (e.g., Zebra TC77)
• 5G base station control modules (e.g., Nokia AirScale)
• Automotive infotainment systems (e.g., Tesla Model 3 dashboard)
• Medical devices with PC Card data logging (e.g., GE Healthcare monitors)
