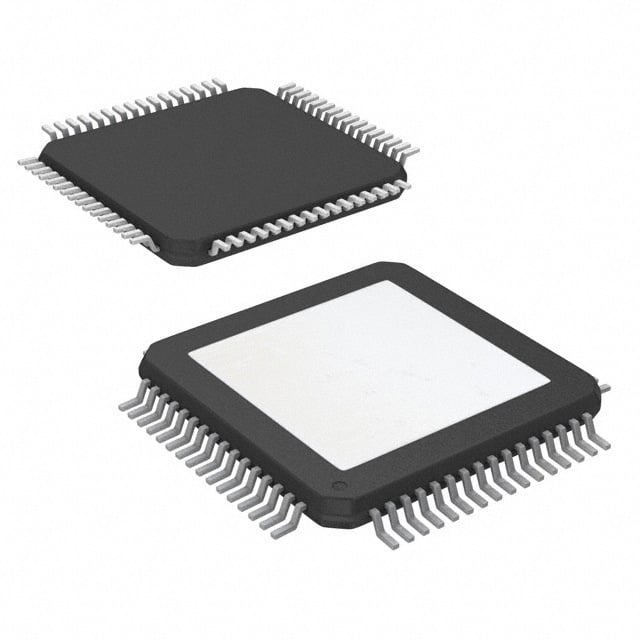

TPS23841PJD TI Power Management IC | 64-HTQFP (10x10) | 4-Channel, IEEE 802.3at PoE

Product Overview

The TPS23841PJD is a highly integrated, 4-channel Power over Ethernet (PoE) controller from Texas Instruments. It is designed to comply with IEEE 802.3at (PoE+) standard, delivering up to 30W per port. The device integrates detection, classification, current limiting, and disconnect detection, making it ideal for midspan and endpoint PSE applications. Packaged in a compact 64-HTQFP (10x10 mm), it offers a robust solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 4 independent PoE channels with IEEE 802.3at compliance
• Integrated power MOSFETs with low RDS(on)
• Programmable current limit and classification
• Support for midspan and endpoint PSE applications
• I2C interface for configuration and monitoring
• Advanced protection: overcurrent, overtemperature, and short-circuit
• Compact 64-HTQFP package for space-saving designs

Target Applications

• 5G base stations (powering remote radio units)
• Industrial Ethernet switches (e.g., for factory automation)
• IP cameras (e.g., 4K surveillance systems)
• Wireless access points (e.g., Wi-Fi 6 enterprise APs)
• PoE lighting systems (e.g., smart building LED drivers)
• Medical devices (e.g., patient monitoring terminals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS23841PJD. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS23841PJD 是德州儀器（TI）推出的一款高度集成的4通道以太網供電（PoE）控制器。它符合 IEEE 802.3at（PoE+）標準，每個端口可提供高達30W的功率。該器件集成了檢測、分類、限流和斷開檢測功能，非常適合中跨和端點PSE應用。採用緊湊的64-HTQFP（10x10 mm）封裝，為空間受限的設計提供了穩健的解決方案。

詳細技術參數

核心特性

• 4個獨立PoE通道，符合IEEE 802.3at標準
• 集成低導通電阻的功率MOSFET
• 可編程電流限制和分類
• 支持中跨和端點PSE應用
• I2C接口用於配置和監控
• 先進保護：過流、過溫、短路
• 緊湊的64-HTQFP封裝，節省空間

典型應用場景

• 5G基站（為遠程射頻單元供電）
• 工業以太網交換機（例如工廠自動化）
• IP攝像機（例如4K監控系統）
• 無線接入點（例如Wi-Fi 6企業級AP）
• PoE照明系統（例如智能建築LED驅動器）
• 醫療設備（例如病人監護終端）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS23841PJD 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
