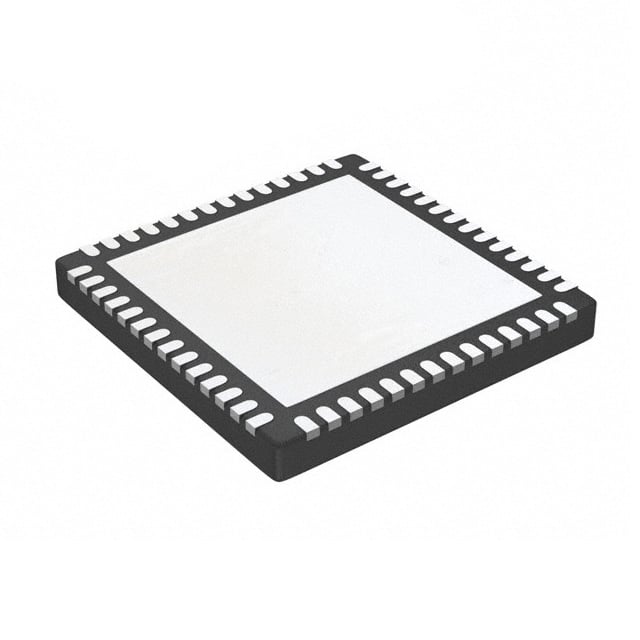

TPS23881RTQT TI PoE PSE Controller | 56-VQFN (8x8) | 4-Pair, 90W, IEEE 802.3bt

Product Overview

The TPS23881RTQT is a highly integrated, quad-channel Power over Ethernet (PoE) Power Sourcing Equipment (PSE) controller from Texas Instruments. It supports IEEE 802.3bt (PoE++) standard, delivering up to 90W per port over 4-pair Ethernet cables. Housed in a compact 56-pin VQFN (8x8 mm) package, it is designed for high-density PoE applications such as switches, routers, and midspans. The device integrates four independent PSE channels with advanced power management, including per-port current sensing, programmable power limits, and support for both 2-pair and 4-pair configurations. With its robust protection features and I2C interface for monitoring and control, the TPS23881RTQT simplifies the design of compliant and efficient PoE systems.

Detailed Technical Specifications

Key Features

• Quad-channel PSE controller with IEEE 802.3bt compliance
• Supports 4-pair power delivery up to 90W per port
• Integrated power MOSFETs with low RDS(on)
• Per-port current sensing and programmable power limits
• I2C interface for real-time monitoring and configuration
• Autonomous operation with hardware-based detection and classification
• Advanced protection: overcurrent, overtemperature, short-circuit, UVLO
• Compact 56-VQFN package for space-constrained designs

Target Applications

• 5G base stations (e.g., remote radio units)
• Industrial switches and routers (e.g., Cisco Catalyst 9200)
• PoE midspans and injectors (e.g., for IP cameras)
• Smart building controllers (e.g., lighting, HVAC)
• Automotive infotainment and dashboard systems
• Medical devices (e.g., patient monitoring systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS23881RTQT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS23881RTQT 是德州儀器（TI）推出的一款高度集成的四通道以太網供電（PoE）電源設備（PSE）控制器。它支持 IEEE 802.3bt（PoE++）標準，通過四對以太網電纜可提供高達 90W 的端口功率。該器件採用緊湊的 56 引腳 VQFN（8x8 mm）封裝，專為高密度 PoE 應用（如交換機、路由器和中跨設備）而設計。它集成了四個獨立的 PSE 通道，具有先進的電源管理功能，包括每端口電流檢測、可編程功率限制以及對兩對和四對配置的支持。憑藉強大的保護功能和用於監控與控制的 I2C 接口，TPS23881RTQT 簡化了合規且高效的 PoE 系統設計。

詳細技術參數

核心特性

• 四通道 PSE 控制器，符合 IEEE 802.3bt 標準
• 支持四對供電，每端口最高 90W
• 集成低導通電阻的功率 MOSFET
• 每端口電流檢測和可編程功率限制
• I2C 接口，用於實時監控和配置
• 基於硬件的檢測和分類，支持自主運行
• 先進保護：過流、過溫、短路、欠壓鎖定
• 緊湊的 56-VQFN 封裝，適合空間受限的設計

典型應用場景

• 5G 基站（例如遠程無線單元）
• 工業交換機和路由器（例如 Cisco Catalyst 9200）
• PoE 中跨和注入器（例如用於 IP 攝像機）
• 智能樓宇控制器（例如照明、暖通空調）
• 汽車信息娛樂和儀表板系統
• 醫療設備（例如病人監護系統）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS23881RTQT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
